DZH Series Manual Coal Boiler Travelling Grate Boiler Hand Feeding Coal Wood Boiler 1ton 2ton 4ton 6ton 8ton

DZH Series Manual Coal Boiler Travelling Grate Boiler Hand Feeding Coal Wood Boiler 1ton 2ton 4ton 6ton 8ton

Model NO.: DZH Coal Boiler

DZH series coal boiler, manual type hand feeding coal boiler, water-tube fire-tube boiler.

Quantity:

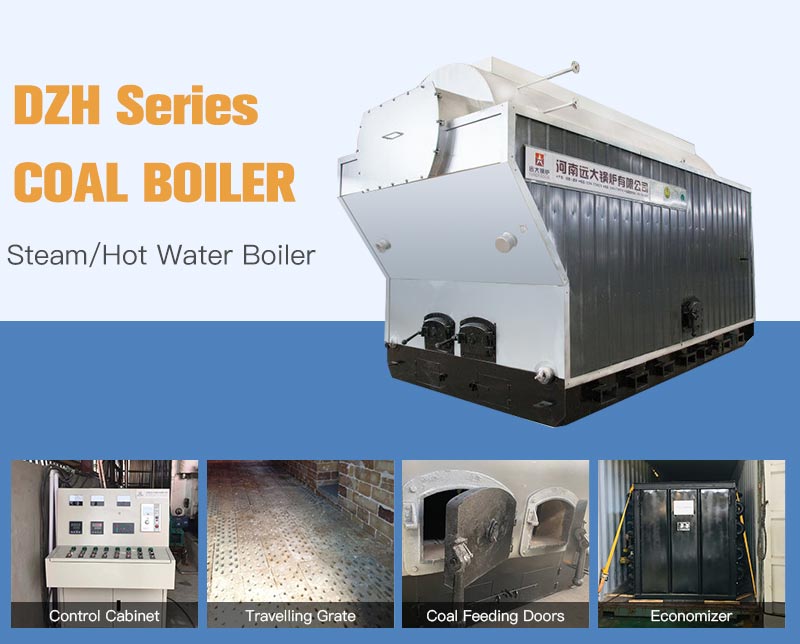

DZH Manual Coal Boiler

Product Description

DZH Series Boiler, is a manual type coal/wood feeding system boiler, water-fire tube sturcture & wing shape flue. It has strong fuel adaptability for solid fuel: coal, wood log, wood chip, wood waste, coal and solid fuel.

Technical Parameter

Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated steam temperature(℃)	feed temperature(℃)	Thermal efficiency(%)	Boiler water volume(m³)	Exhaust temperation(℃)	Fuel comsumption（Kg/h）	max transportation weigh(t)
Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated steam temperature(℃)	feed temperature(℃)	Thermal efficiency(%)	Boiler water volume(m³)	Exhaust temperation(℃)	Fuel comsumption（Kg/h）	max transportation weigh(t)
DZH1	1	1.0/1.25/1.6	184/194/204	20/104	＞82	3.15	127.25	192.32	9
DZL1	1	1.0/1.25/1.6	184/194/204	20/104	＞82	3.15	113.34	190.42	13.5
DZH2	2	1.0/1.25/1.6	184/194/204	20/104	＞82	4.75	126.41	386.47	15
DZL2	2	1.0/1.25/1.6	184/194/204	20/104	＞82	4.77	106.34	393.77	22
DZH4	4	1.0/1.25/1.6	184/194/204	20/104	＞82	7.7	137.25	782.29	18.5
DZL4	4	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞82	8.2	124.49	756.89	27.6
DZH6	6	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞82	7.4	146.83	1169.57	25
DZL6	6	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞82	8.1	137.29	1148.68	35
DZL8	8	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞82	9.6	141.06	1602.44	38
Note: Parameter is for reference only, if any changes should follow the factory technical data.

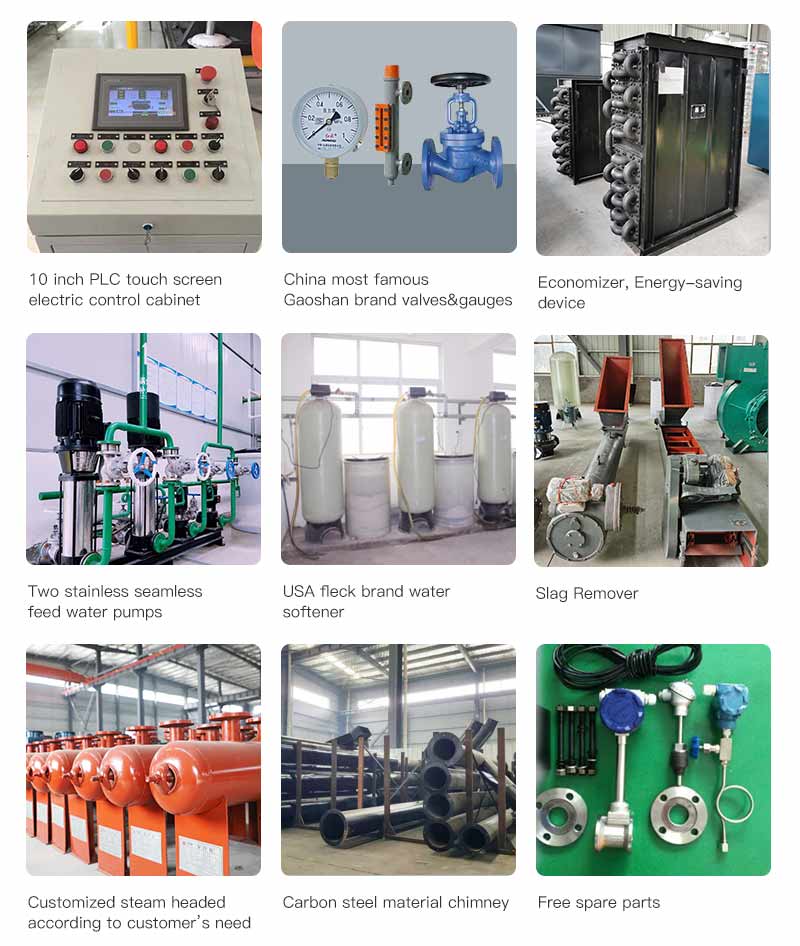

Boiler Accessories

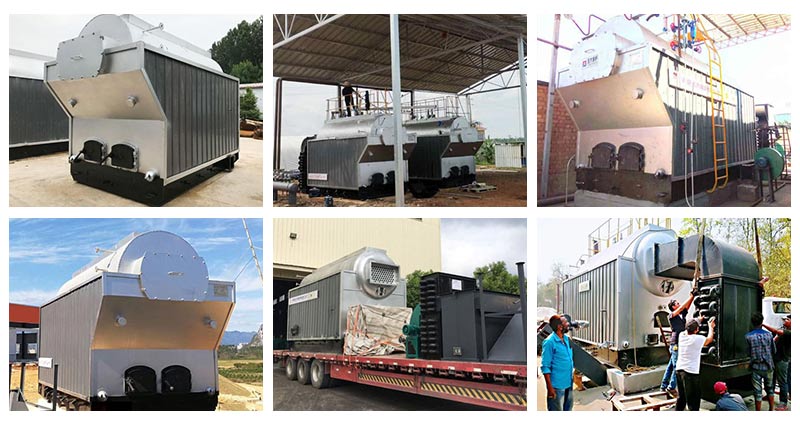

Boiler Cases

Why Choose us

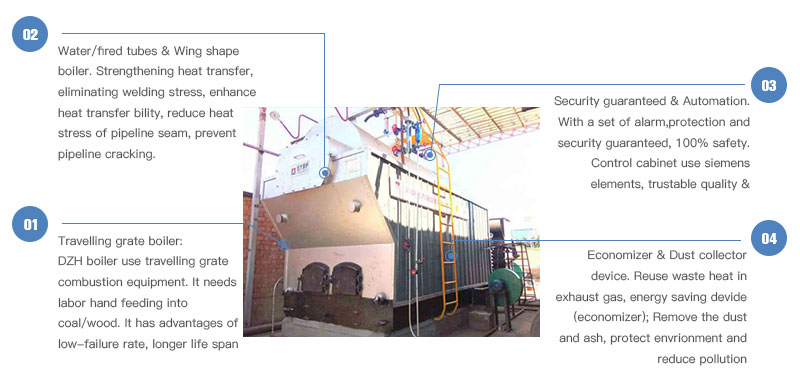

Boiler Features：Steam Boiler; Hot Water Boiler; Coal, charcoal, briquette, wood, biomass; Horizontal Boiler; 0.5ton-50ton; 350kw-35000kw; Three Pass Boiler; Manual Type; Pressure 0.1Mpa-3.8Mpa; Lifespan More Than 20Years

Application

Coal fired boiler, widely used for industries in Foods, Beverage, Pasteurization, Textile, Paper, Animal feed, Garment, Ricemill, Dairy Products, Laundry, Poultry, Packaging, Plywood, Building material, Chemical, Center Heating, Hospital...
