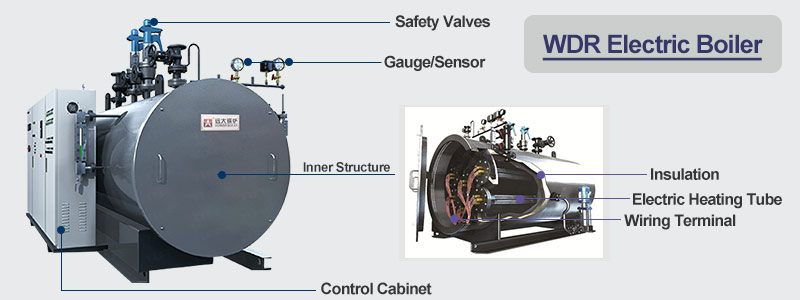

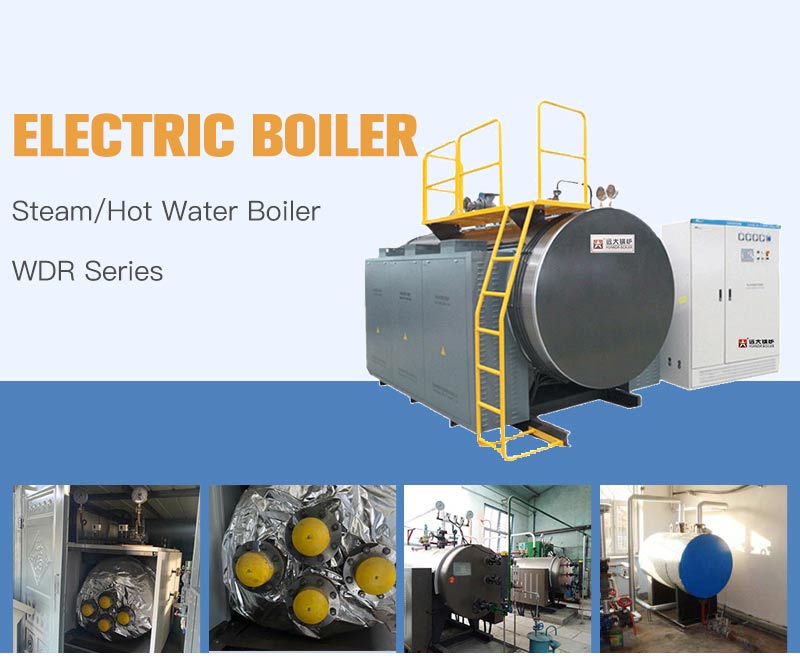

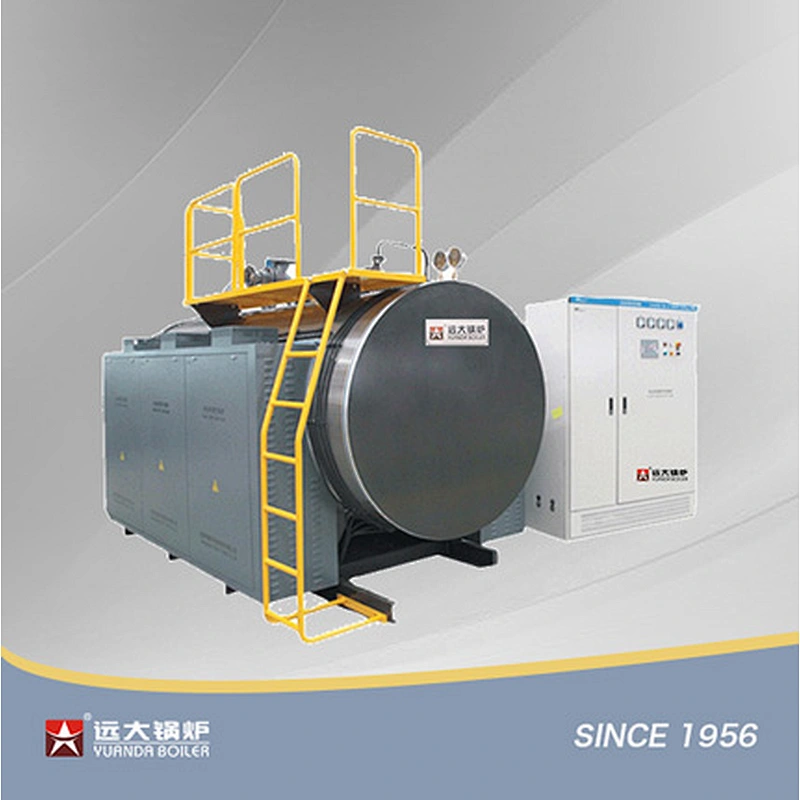

WDR Electric Boiler
Electric boiler, it use electricity as energy heating water into high temperature water/steam, output steam for heating process in factory.
1. With the advantages of environmental protection, no-pollution, no noise
2. It's easier to install the boiler and accessories, make it normal work during running
3. Small footprint, less occupy area than other boiler equipment
4. Fully automatic control boiler system, high-automation control
5. Energy saving deisgn, higher thermal efficiency than others
1. Perfect safety protection function: boiler over-pressure, over temperature, low water level, power failure, sudden failures can be shut down in time to eliminate the fault and manually reset.
2. High degree of automation: fully automatic control, the main control components use world famous brand products to ensure the safety and reliability of boiler operation.
3. Stainless steel tubular nickel-chromium alloy electric heating tube, good heat transfer effect, low heat loss and high thermal efficiency up to 99%, long service life.
4.The outer packaging of the boiler is made of stainless steel, which is exquisite and beautiful. It's easier to intsall and operate 100% safely.
| WDR Series Steam Boiler Technical Parameter Table | ||||||||
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | Feed-water temperature(℃) | Thermal efficiency(%) | Electric power(KW） | Applicable power supply(V/HZ） | Boiler weigh(t) |
| WDR0.2 | 0.2 | 0.7 | 170.4 | 20 | ＞98 | 150 | 380/50 | 0.86 |
| WDR0.5 | 0.5 | 0.7 | 170.4 | 20 | ＞98 | 390 | 380/50 | 0.95 |
| WDR1 | 1 | 1.0 | 184 | 20 | ＞98 | 760 | 380/50 | 1.73 |
| WDR2 | 2 | 1.25 | 195 | 20 | ＞98 | 1520 | 380/50 | 2.73 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||

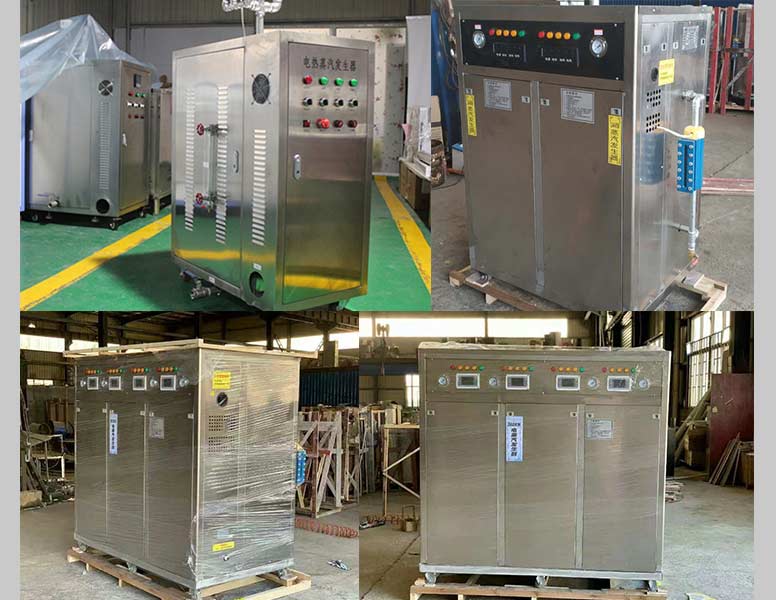

LDR series vertical electric boiler, small electric boiler. Also said electric steam generator, capacity in 35kw-700kw (50kg-1000kg)
Electric heating boiler, widely used for industries in Foods, Beverage, Pasteurization, Textile, Paper, Animal feed, Garment, Ricemill, Dairy Products, Laundry, Poultry, Packaging, Plywood, Building material, Chemical, Center Heating, Hospital...
