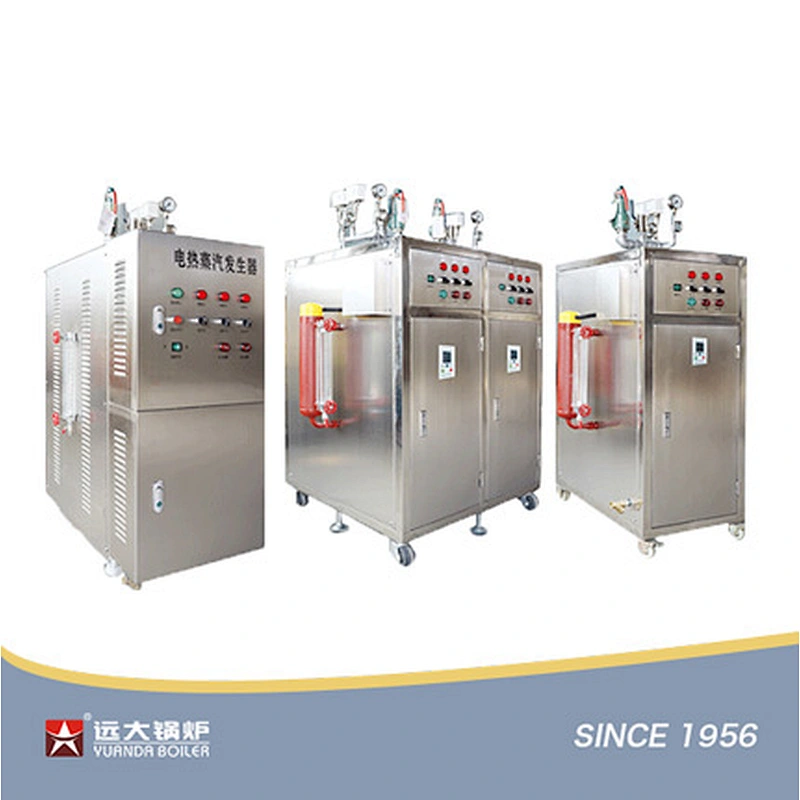

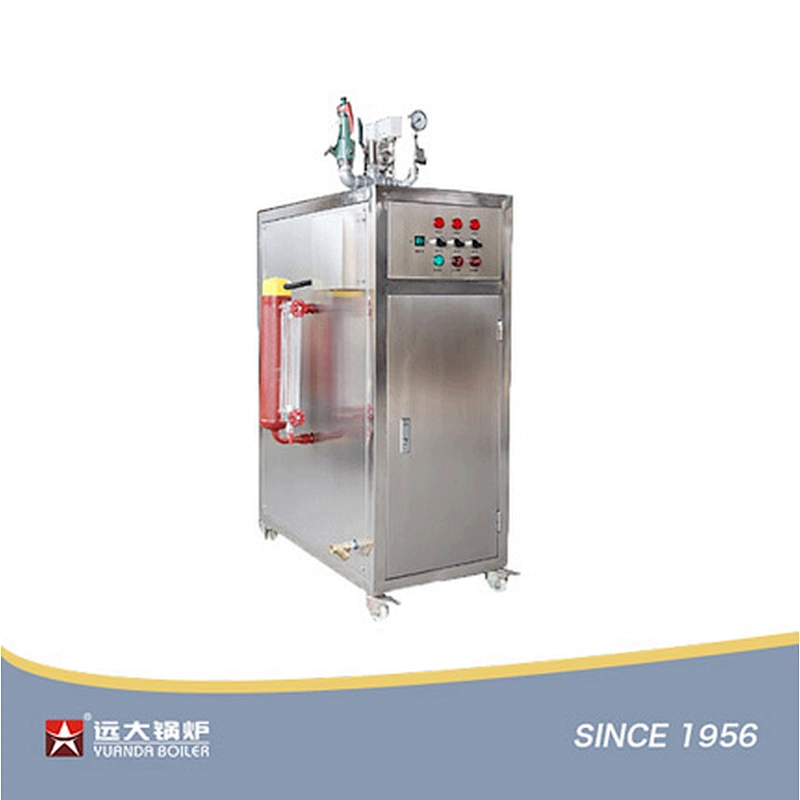

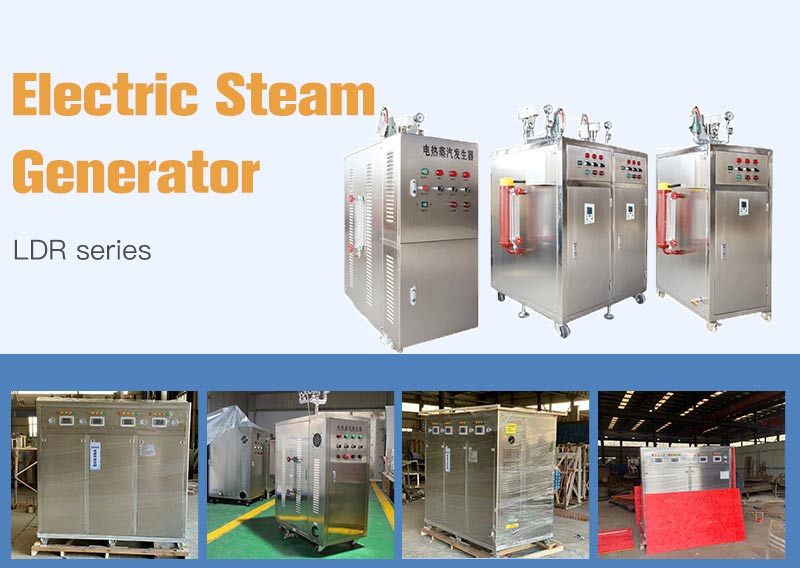

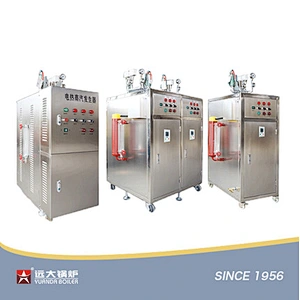

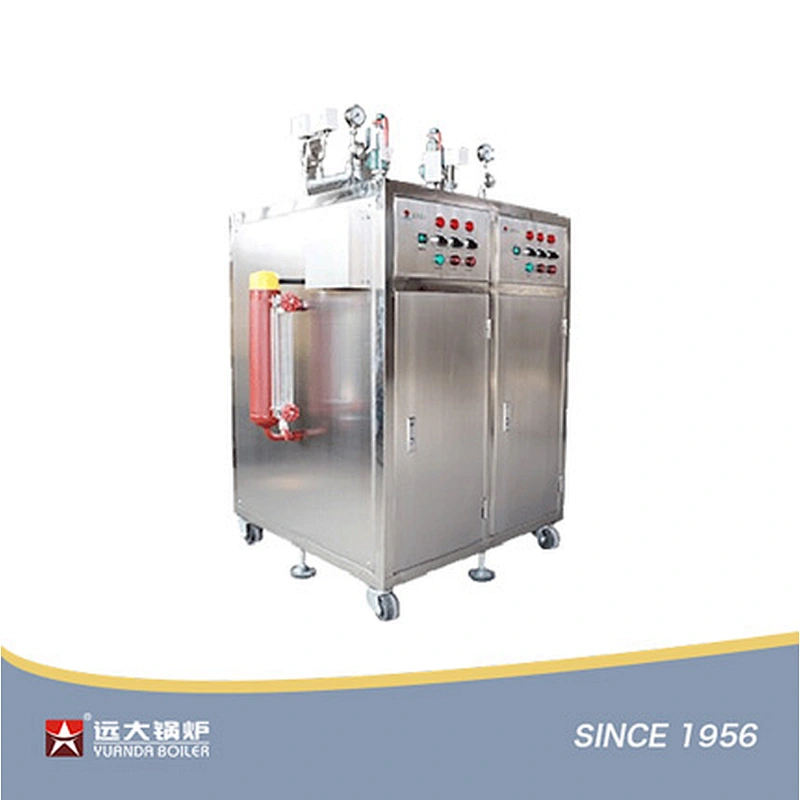

Electric Steam Generator Boiler
LDR series portable electric steam generator, automatic generator by electricity power. Its simple structure steam machine, you can use it 100% safety, also its easy to move everywhere by using bottom wheel. Make your best economic and saving money choice-electric steam generator.
1) Use LCD Automatic Intelligent Electronic Control System
2) The Use of High-quality Core Components—Electric Heating Pipe
3) Use High-quality Components
4) Multiple Safety Interlock Protection
5) Set Reasonable Electric Load, Save Energy & Extend Life Cycle
6) Easy to Install and Use
7) Scientific Design and Attractive Appearance
8) Environmentally Friendly and More Economical

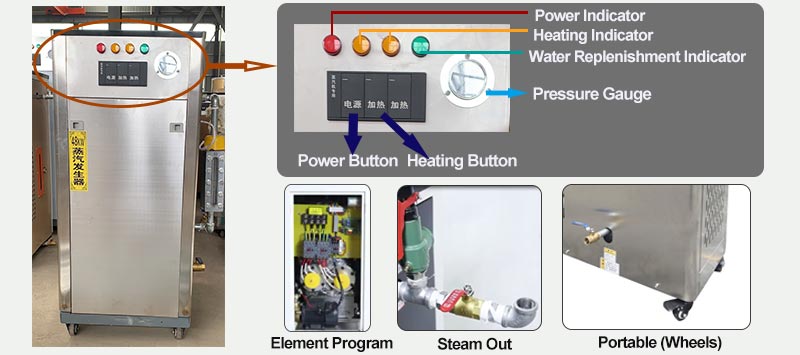

(1) Electric steam generator: small size, light weight, complete machine, easy to install
(2) Double safety guarantee for adjustable pressure controller and safety valve
(3) Hydropower independent box, convenient for maintenance, safe and reliable
(4) Adopy high quality seamless stainless steel heating tubes, adjustable power output
(5) Electric heating, no open flame, no safety hazard, with brakes Vientiane casters
(6) Just need five second, it could produce steam output when open it
| Model | Rated evaporation(KG/H) | Rated pressure (Mpa) | Saturation temperature(℃) | Power(KW) | Thermal efficiency(%) | Water capacity(L) | power supply(V) |
| LDR0.034-0.4 | 34 | 0.4 | 150 | 24 | 99.9 | 18 | 380 |
| LDR0.05-0.4 | 50 | 0.4 | 150 | 36 | 99.9 | 21 | 380 |
| LDR0.065-0.4 | 65 | 0.4 | 150 | 48 | 99.9 | 21 | 380 |
| LDR0.1-0.4 | 100 | 0.4 | 150 | 72 | 99.9 | 23 | 380 |
| LDR0.15-0.4 | 150 | 0.4 | 150 | 108 | 99.9 | 29 | 380 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||
