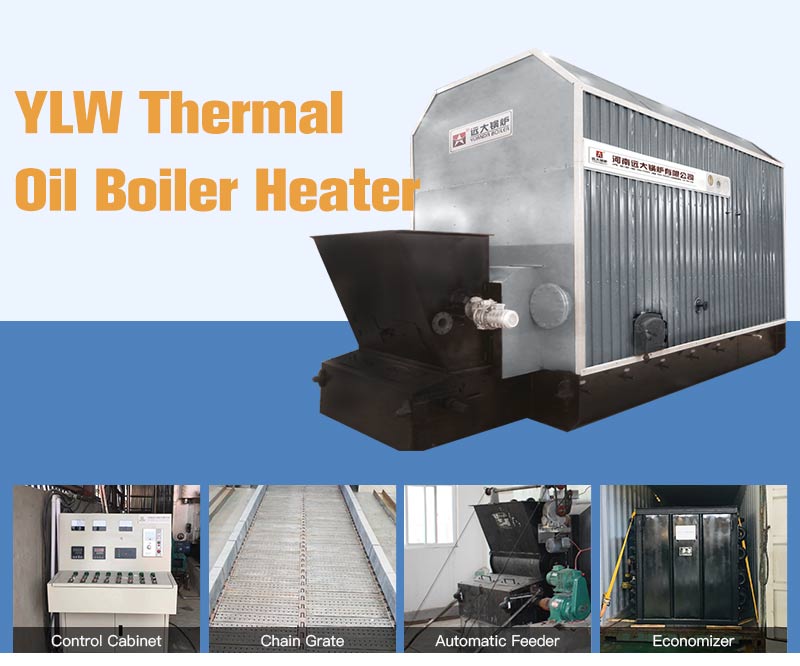

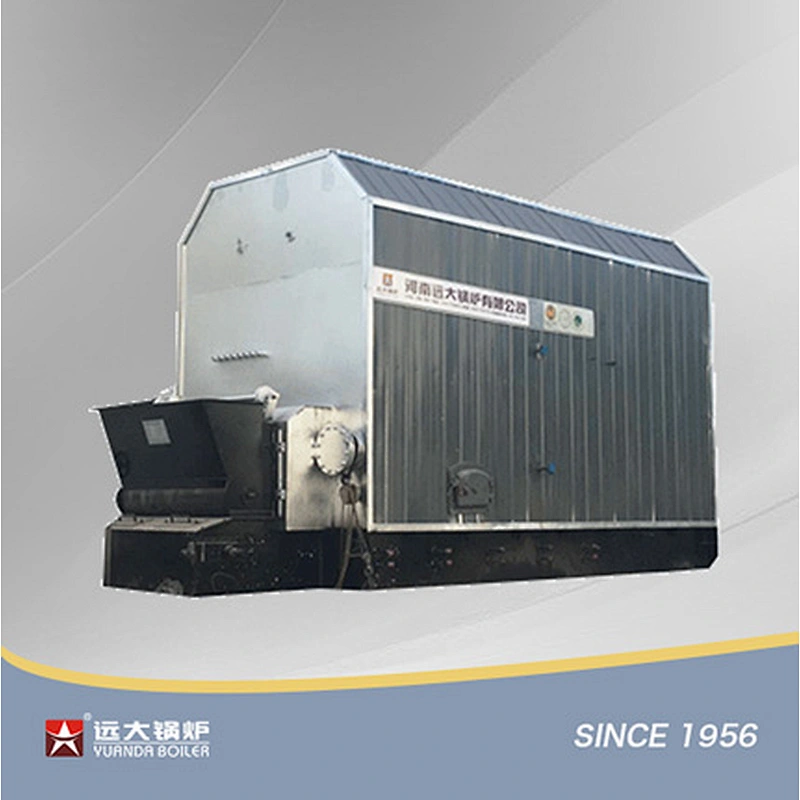

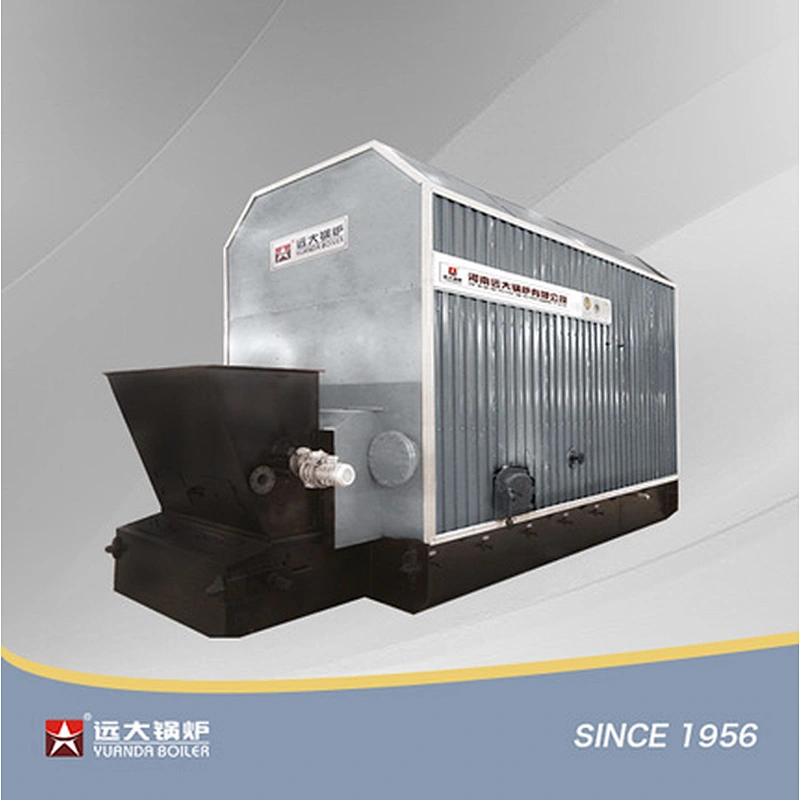

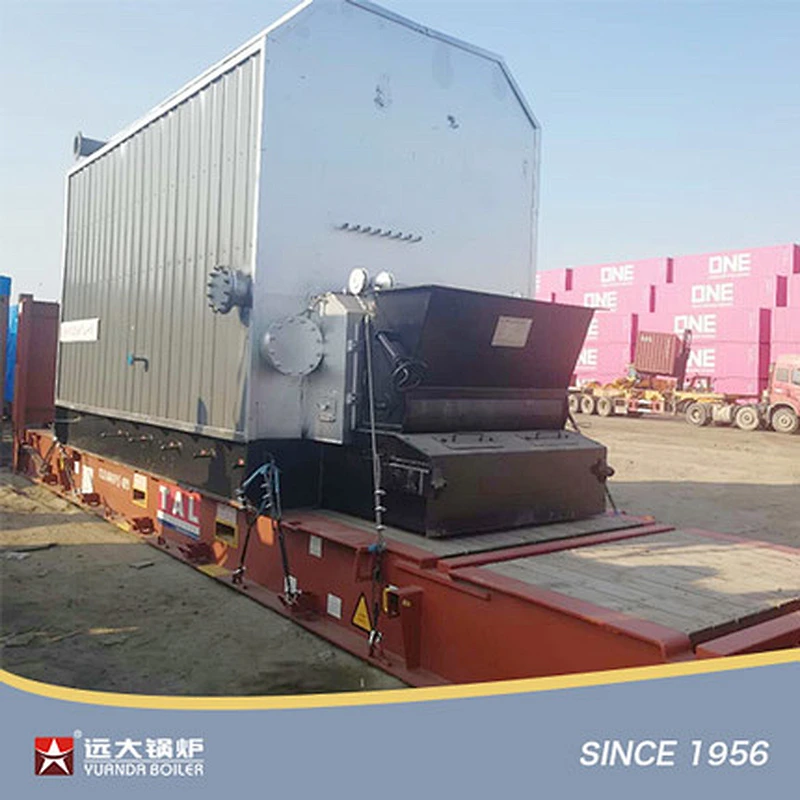

YLW Coal/Biomass/Wood Thermal Oil Boiler
Product Description

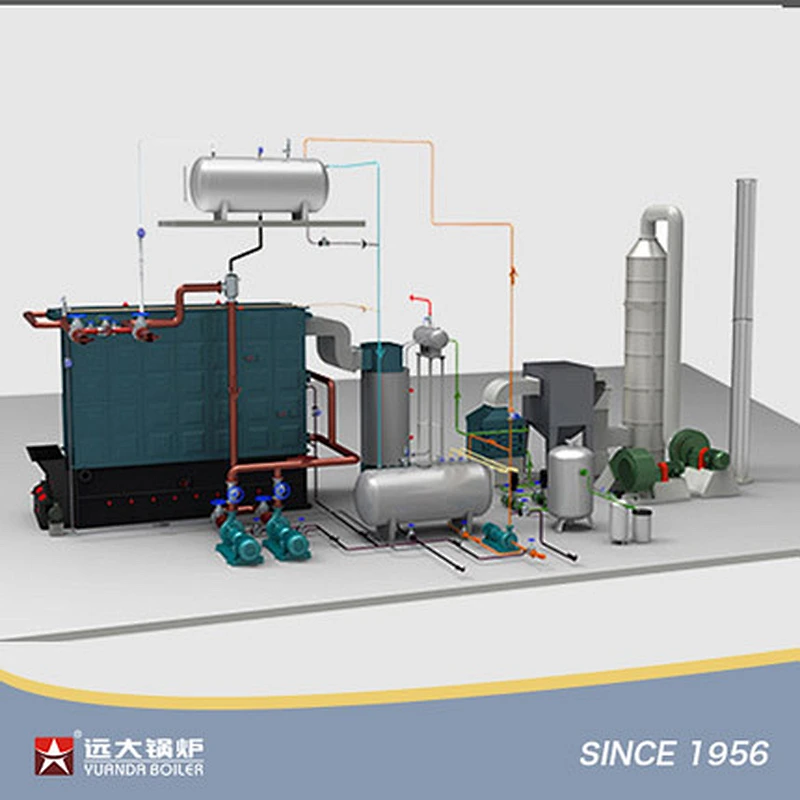

YLW series Coal/Wood/Biomass thermal oil boiler, horizontal three pass coil structure, use circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment.
Technical Parameter
| Model | Rated power(KW) | Rated pressure (Mpa) | Thermal oil temperature(℃) | Thermal efficiency(%) | Thermal oil circulation flow(m³/h) | Fuel comsumption(Kg/h) | max transportation weigh(t) |
| YLW-700 | 0.7 | 0.8/1.0 | 250-320 | ＞83 | 45.7 | 187 | 16.9 |
| YLW-1400 | 1.4 | 0.8/1.0 | 250-320 | ＞83 | 87.4 | 373 | 22 |
| YLW-2400 | 2.4 | 0.8/1.0 | 250-320 | ＞83 | 149.8 | 621.3 | 28.6 |
| YLW-2900 | 2.9 | 0.8/1.0 | 250-320 | ＞83 | 155 | 756 | 24.2 |
| YLW-4200 | 4.2 | 0.8/1.0 | 250-320 | ＞83 | 225 | 989.3 | 30 |
| YLW-5600 | 5.6 | 0.8/1.0 | 250-320 | ＞83 | 336 | 1196 | 33.6 |
| YLW-7000 | 7 | 0.8/1.0 | 250-320 | ＞83 | 383.5 | 1657.4 | 18.2 |
| YLW-8400 | 8.4 | 0.8/1.0 | 250-320 | ＞83 | 536.2 | 1926.2 | 24.3 |
| YLW-10500 | 10.5 | 0.8/1.0 | 250-320 | ＞83 | 686.6 | 2442.6 | 27.5 |
| YLW-14000 | 14 | 0.8/1.0 | 250-320 | ＞83 | 869.1 | 3230 | 31 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||

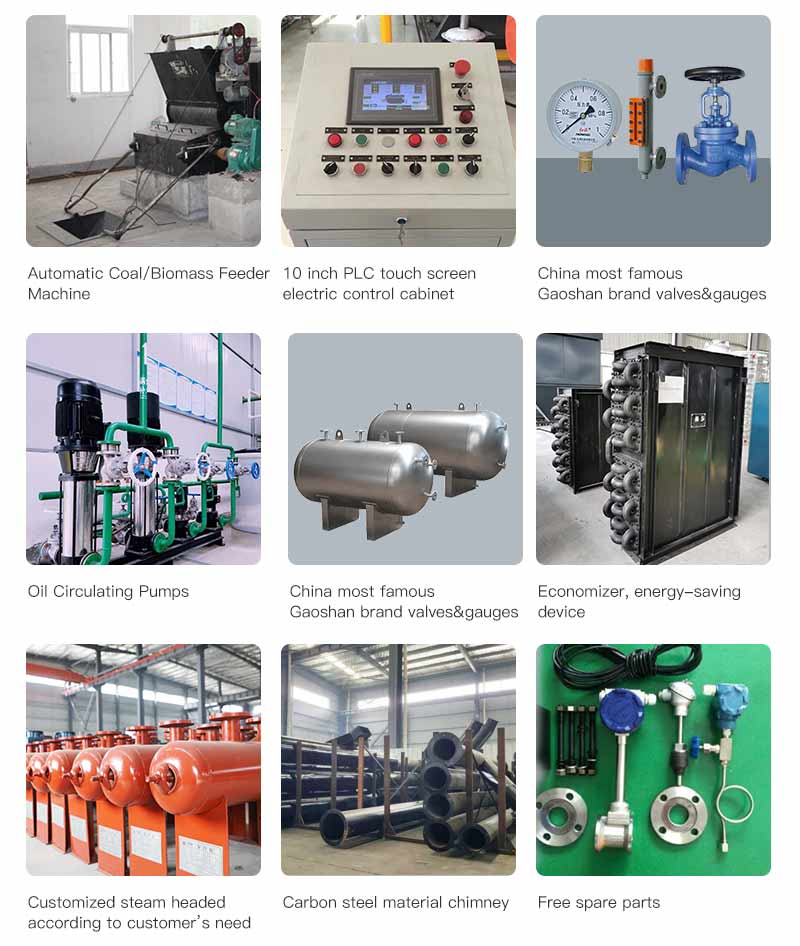

Boiler Accessories

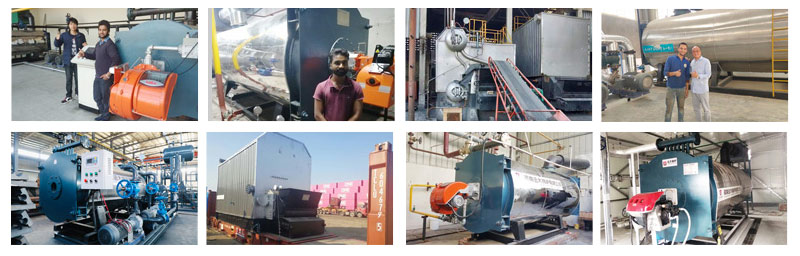

Boiler Cases
