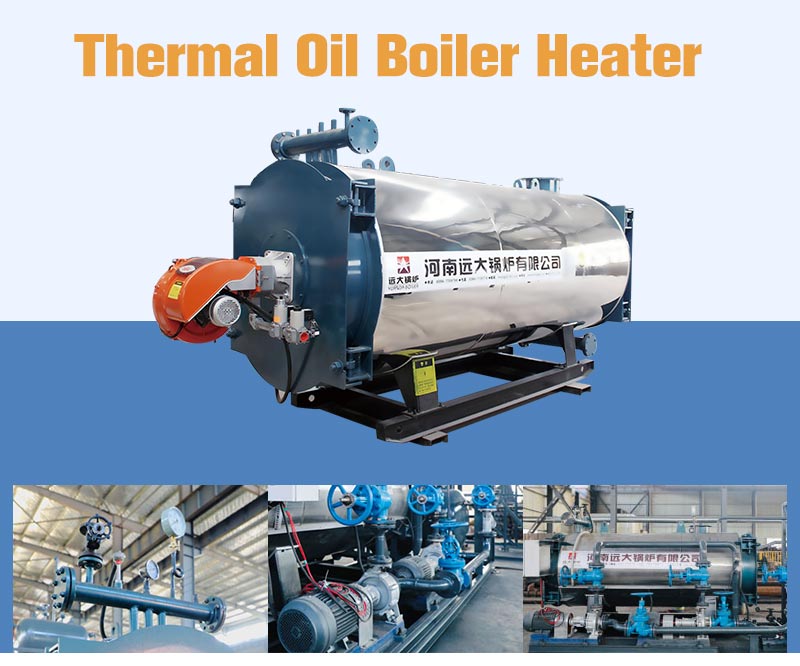

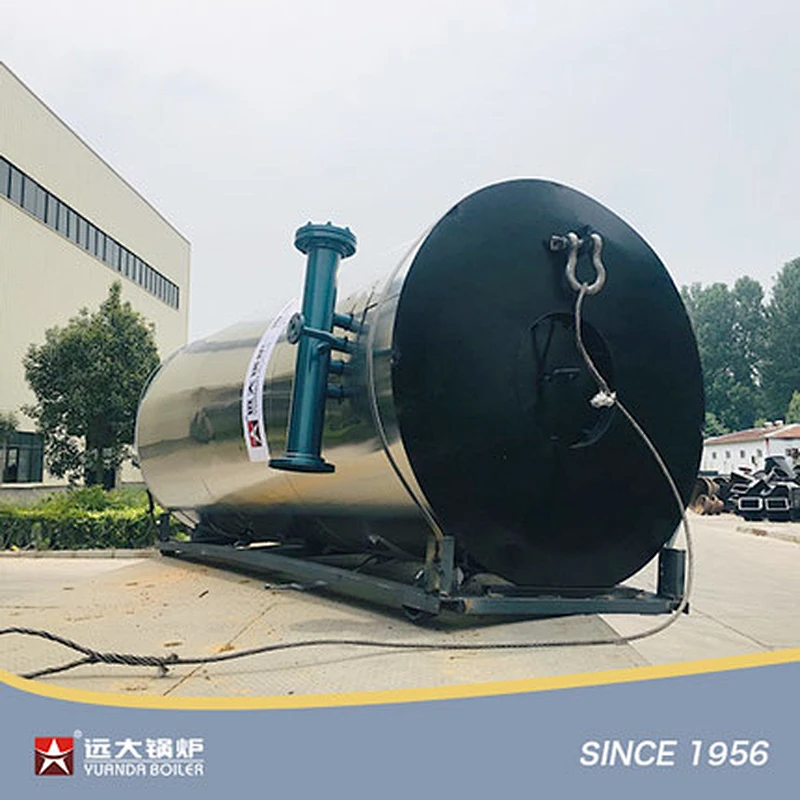

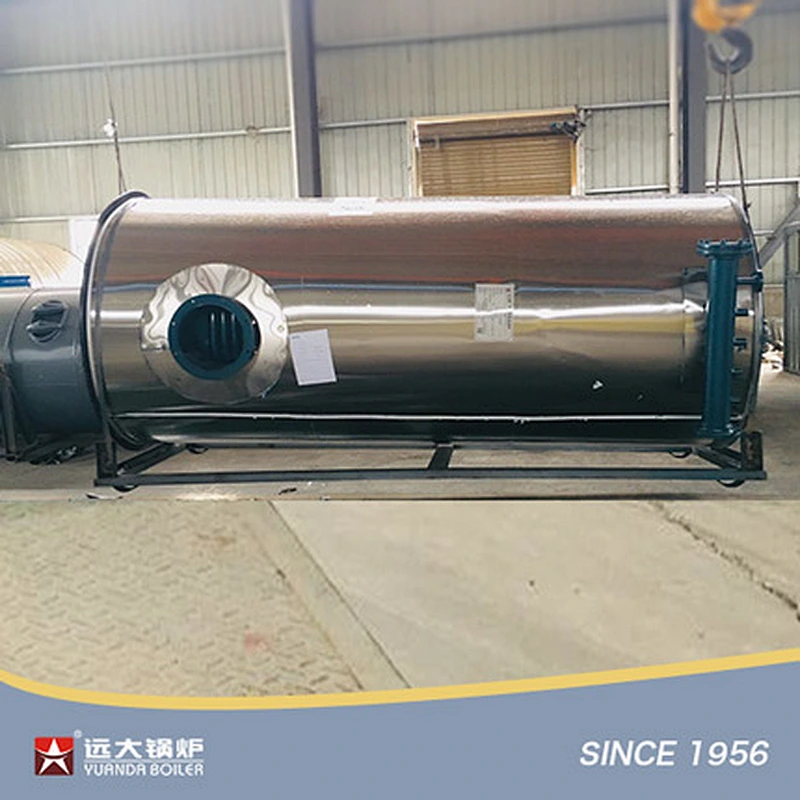

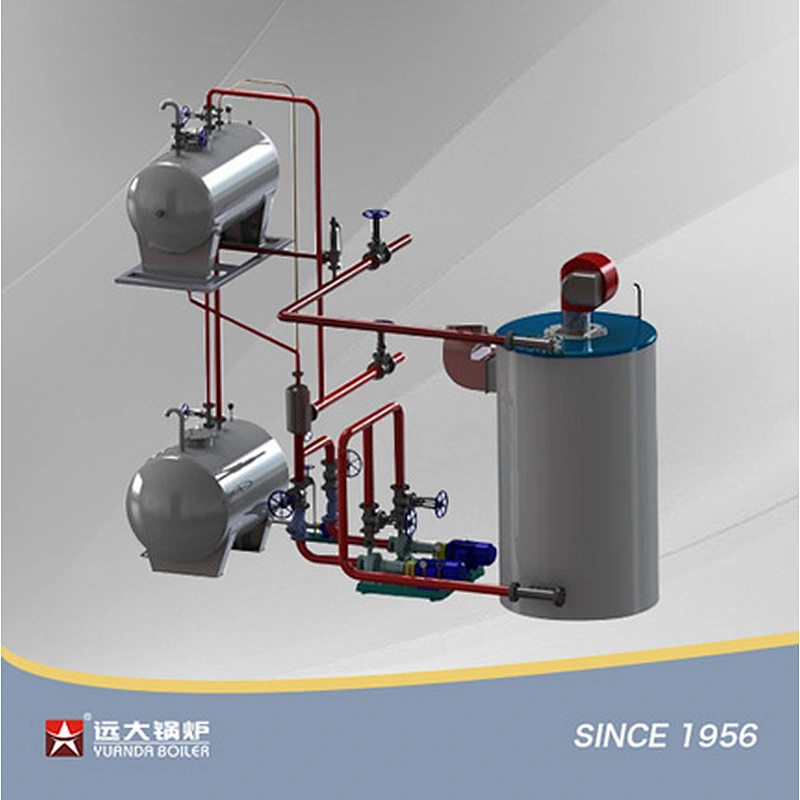

YYQL Vertical Thermal Oil Boiler
Product Description

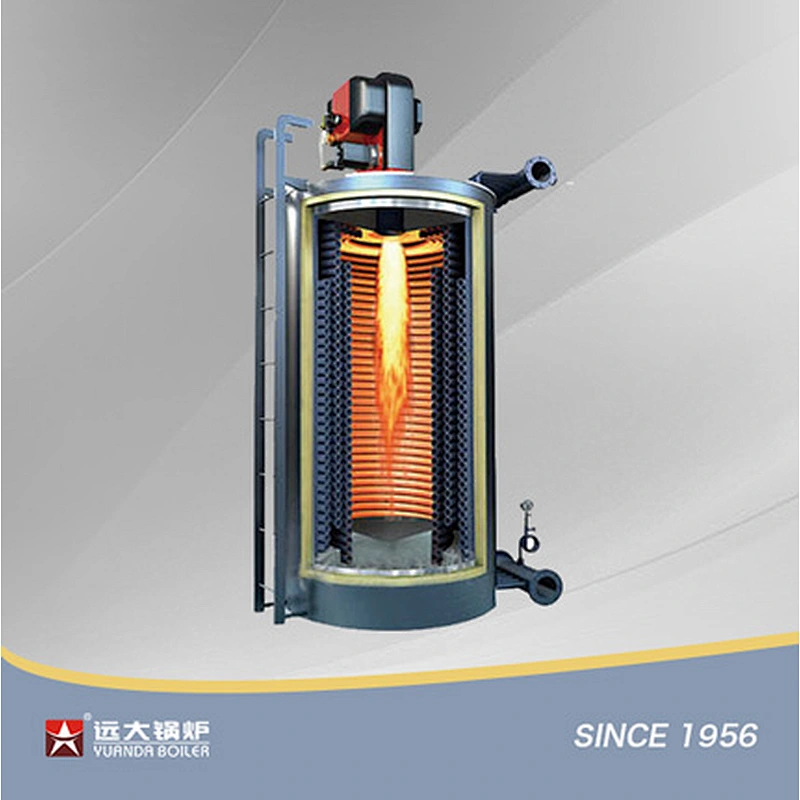

YY(Q)L series Vertical thermal oil boiler, adopts a vertical chamber-fired & three-coil structure, and the body is composed of an outer coil, a middle coil and an inner coil.
Technial Parameter
| Model | Rated power(KW) | Rated pressure (Mpa) | Thermal oil temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||
| YY(Q)W-700Y(Q) | 700 | 0.8/1.0 | 250-320 | ＞96 | 61.3 | 73.6 | 3 |
| YY(Q)W-1400Y(Q) | 1400 | 0.8/1.0 | 250-320 | ＞96 | 122.6 | 147.1 | 4 |
| YY(Q)W-3000Y(Q) | 3000 | 0.8/1.0 | 250-320 | ＞96 | 249.2 | 296.4 | 10 |
| YY(Q)W-3500Y(Q) | 3500 | 0.8/1.0 | 250-320 | ＞96 | 305.6 | 366.8 | 10.2 |
| YY(Q)W-4200Y(Q) | 4200 | 0.8/1.0 | 250-320 | ＞96 | 367.5 | 436.6 | 16.5 |
| YY(Q)W-5600Y(Q) | 5600 | 0.8/1.0 | 250-320 | ＞96 | 489.6 | 586.8 | 23.6 |
| YY(Q)W-7000Y(Q) | 7000 | 0.8/1.0 | 250-320 | ＞96 | 612.3 | 726.9 | 28 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||

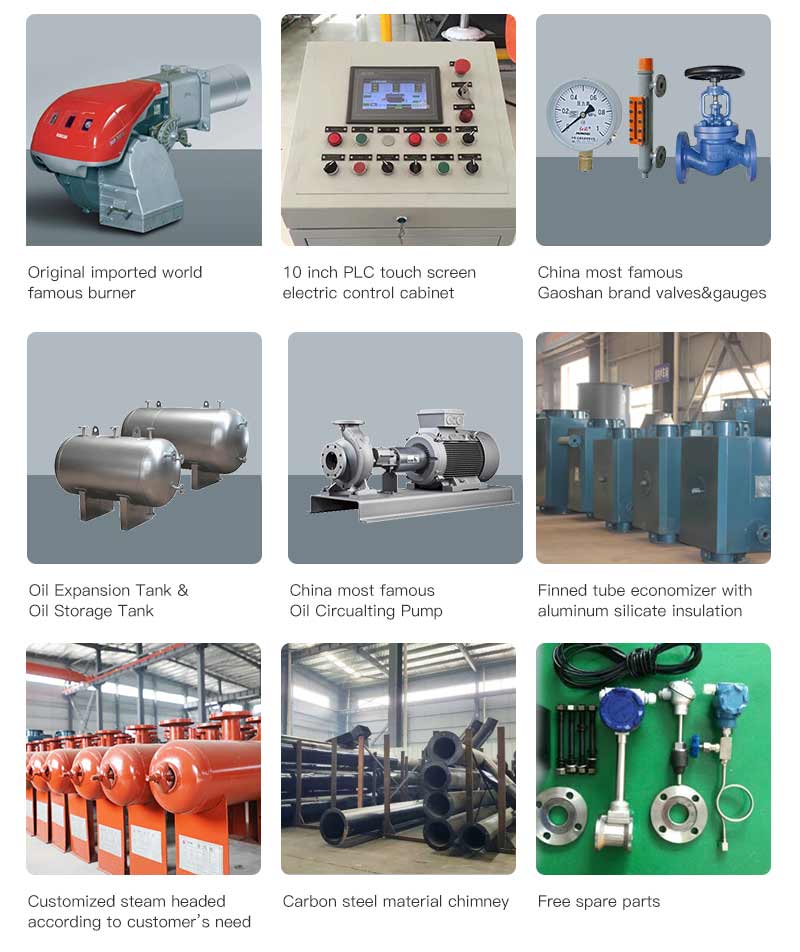

Boiler Accessories

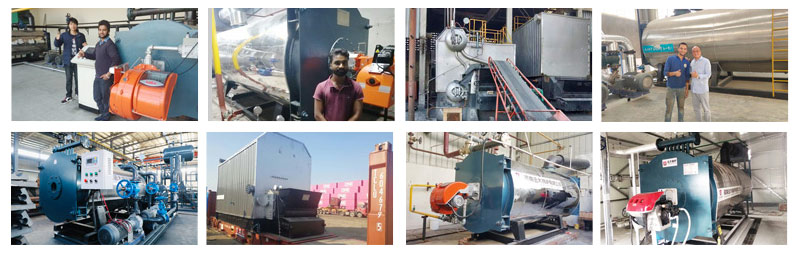

Boiler Cases
