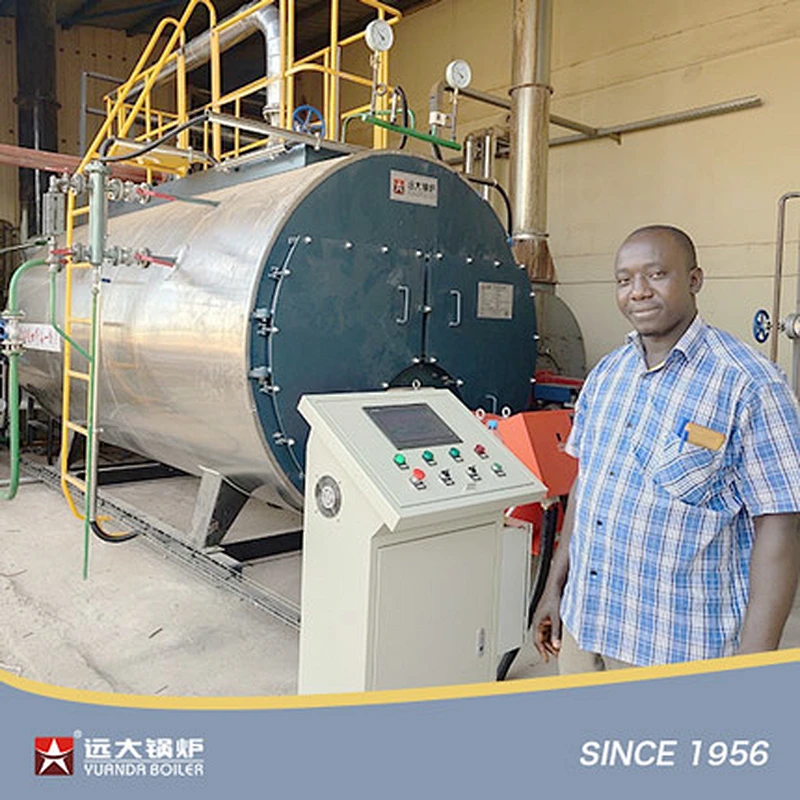

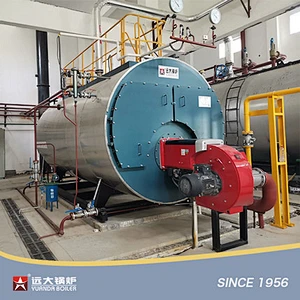

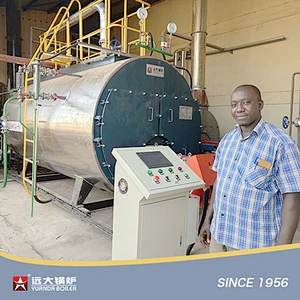

Natural Gas Diesel Heavy Oil Fired Boiler Horizontal Fire Tube Boiler 1ton 2ton 3ton 4ton 5ton 6ton 8ton 10ton 12ton 15ton 18ton 20ton Industrial Boiler China

Natural Gas Diesel Heavy Oil Fired Boiler Horizontal Fire Tube Boiler 1ton 2ton 3ton 4ton 5ton 6ton 8ton 10ton 12ton 15ton 18ton 20ton Industrial Boiler China

Model NO.: WNS

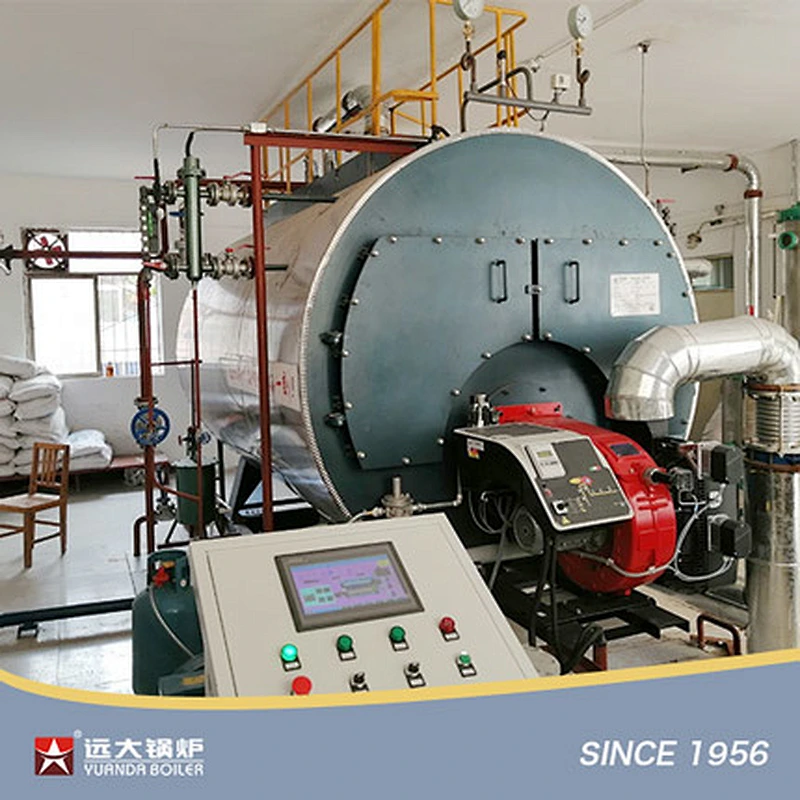

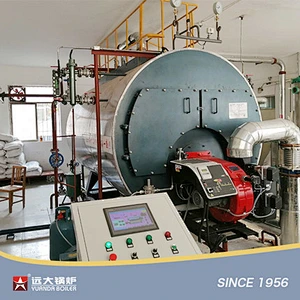

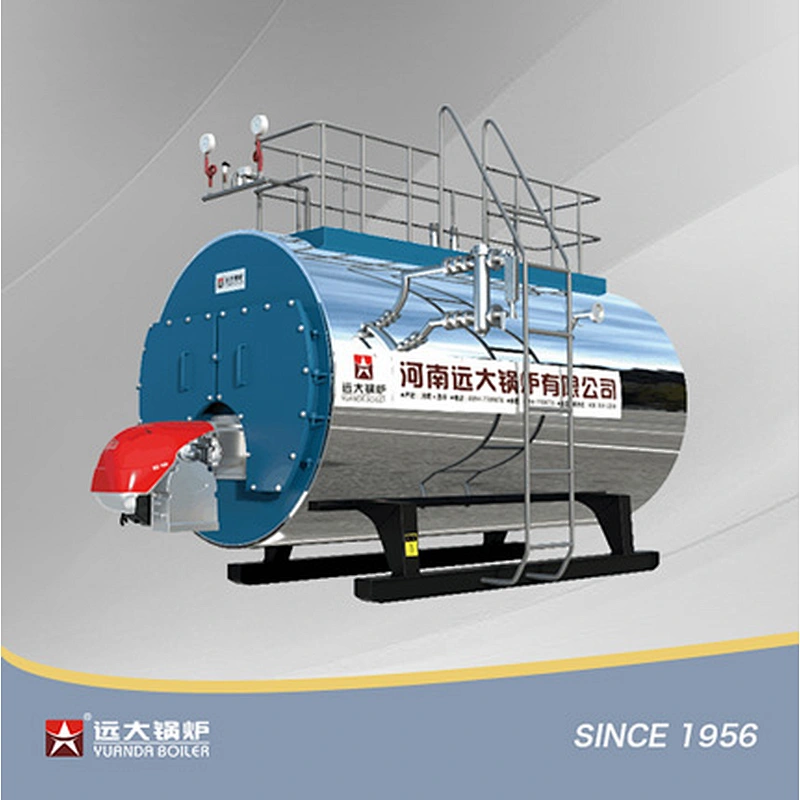

WNS series gas oil fired boiler, it is horizontal type fire tube boiler, three pass boiler, wet back boiler. Fully automatic steam boiler & hot water boiler, with high efficiency up to 99%.

Quantity:

Industrial Gas Oil Fired Boiler

Product Details

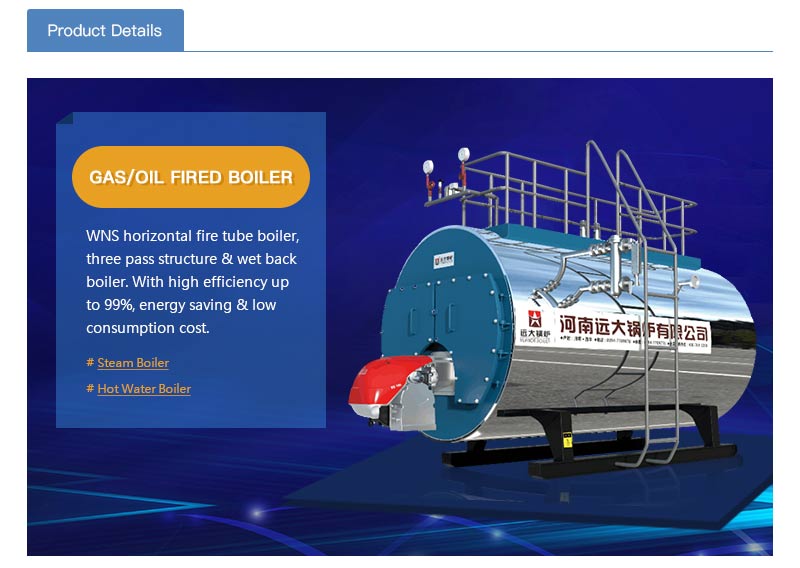

WNS series gas oil fired boiler is horizontal three pass fire tube wet back full automatic steam boiler. It normally suitable for 500kg to 20ton/h capacity, use all kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.

1. Model: WNS

2. Capacity: 500kg/h-20ton/h, 350kw-14000kw

3. Design pressure: 1.0Mpa(10bar), 1.25Mpa(13bar), 1.6Mpa(16bar),2.5Mpa(25bar)

4. Design fuel: natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil

5. Structure: three pass, fire tube, wet back structure

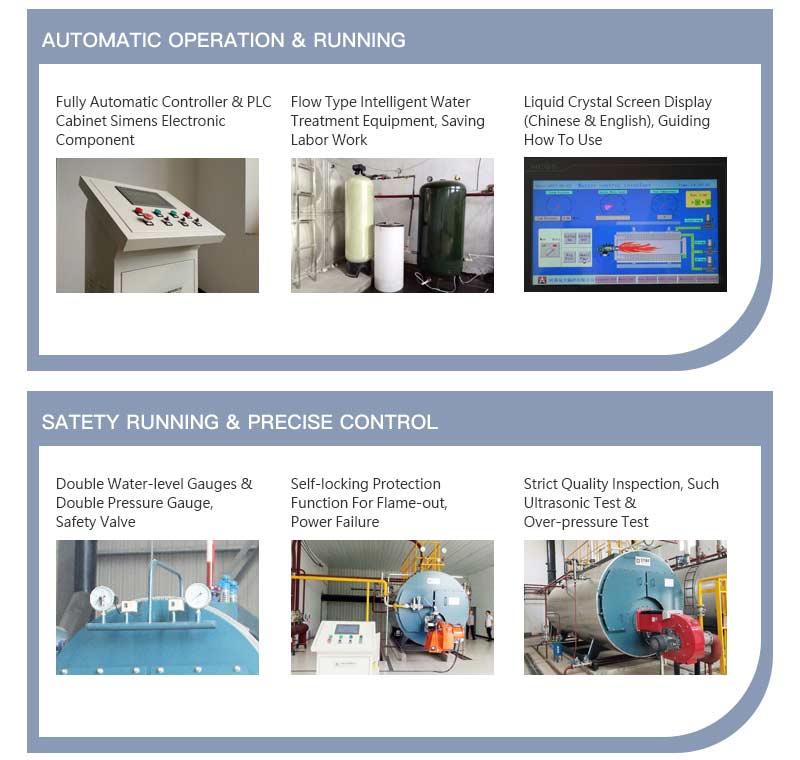

Boiler Advantages

fully automatic gas oil boiler,WNS fire tube boiler china boiler manufacturer,industrial boiler

industrial gas oil boiler,fire tube boiler

Technical Parameter

Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated temperature(℃)	feed temperature(℃)	Thermal efficiency(%)	Exhaust temperation(℃)	Fuel comsumption		max transportation weigh(t)
Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated temperature(℃)	feed temperature(℃)	Thermal efficiency(%)	Exhaust temperation(℃)	light diesel oil(kg/h)	natural gas(Nm³/h)	max transportation weigh(t)
WNS0.5-1.0/1.25/1.6-YQ	0.5	1.0/1.25/1.6	184/194/204	20/104	＞98	60-75	32.5	35.7	3.5
WNS1-1.0/1.25/1.6-YQ	1	1.0/1.25/1.6	184/194/204	20/104	＞98	60-75	64.5	70.1	5.5
WNS2-1.0/1.25/1.6-YQ	2	1.0/1.25/1.6	184/194/204	20/104	＞98	60-75	129.3	140.3	8
WNS3-1.0/1.25/1.6-YQ	3	1.0/1.25/1.6	184/194/204	20/104	＞98	60-75	192.9	212.1	10.7
WNS4-1.0/1.25/1.6-YQ	4	1.0/1.25/1.6	184/194/204	20/104	＞98	60-75	258.2	283.4	11.6
WNS6-1.0/1.25/1.6-YQ	6	1.0/1.25/1.6	184/194/204	20/104	＞98	60-75	388.6	424.2	17.5
WNS8-1.0/1.25/1.6/2.5-YQ	8	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞98	60-75	514.6	566.3	22.5
WNS10-1.0/1.25/1.6/2.5-YQ	10	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞98	60-75	641.7	707.8	26.8
WNS15-1.0/1.25/1.6/2.5-YQ	15	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞98	60-75	960.1	1061.7	35.2
WNS20-1.0/1.25/1.6/2.5-YQ	20	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞98	60-75	1276.2	1415.8	45.5
Note: Parameter is for reference only, if any changes should follow the factory technical data.

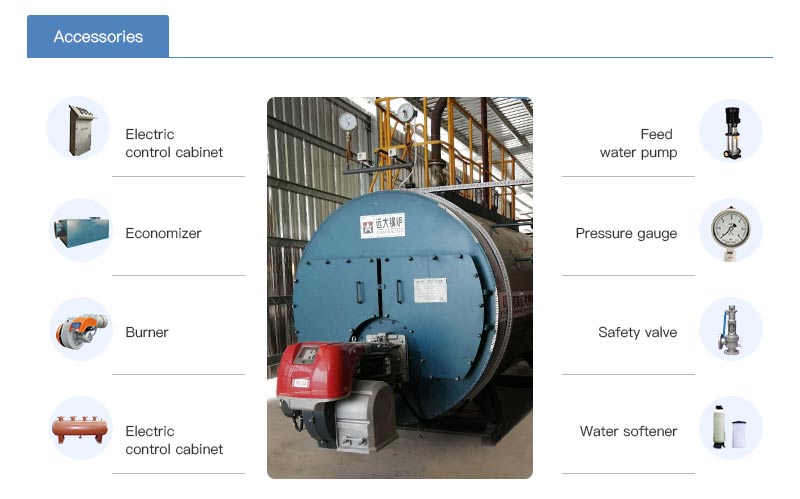

Boiler Accessories

gas oil boiler accessories

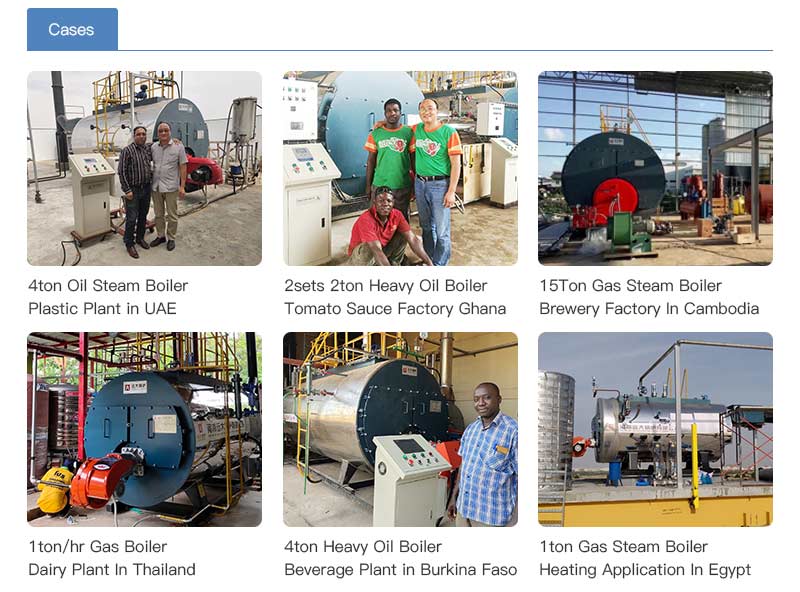

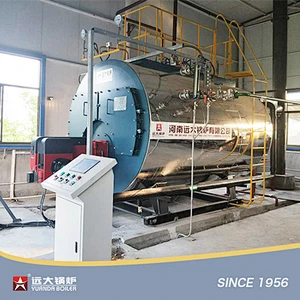

Boiler Cases

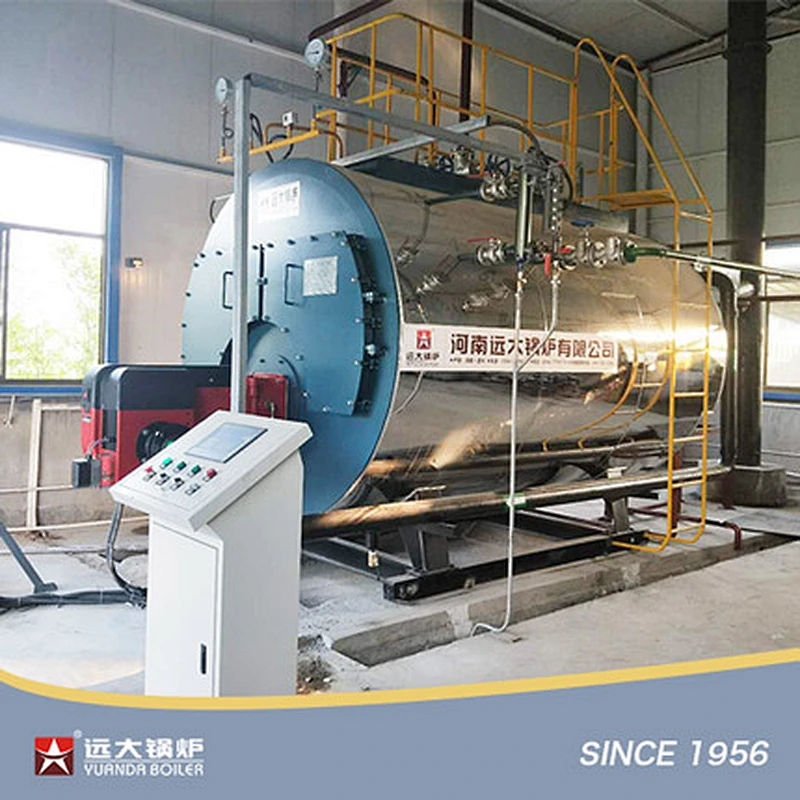

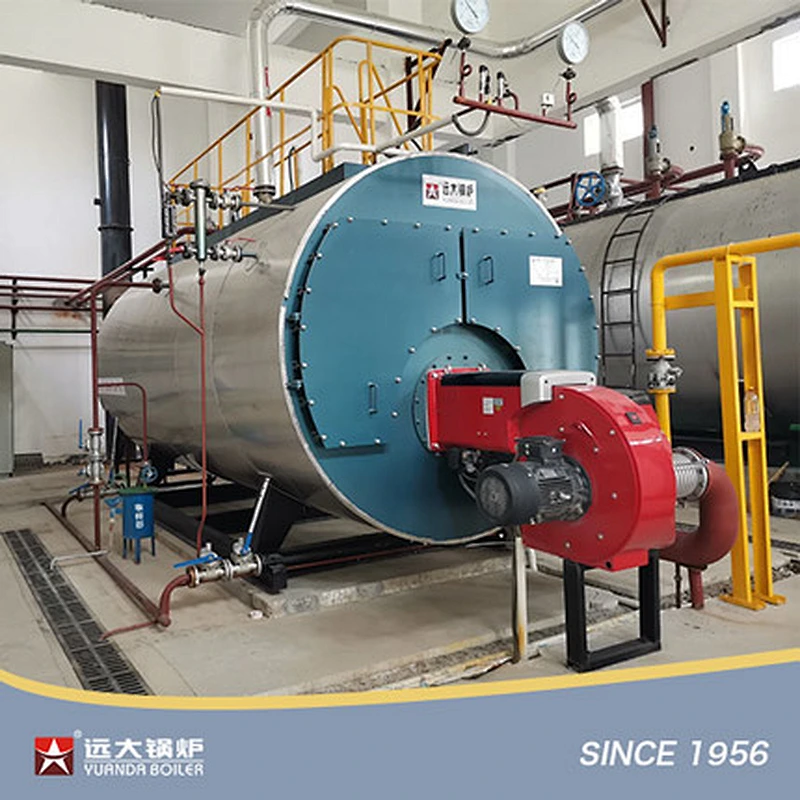

gas oil boiler projects,fire tube boiler

Packaging & Delivery

industrial boiler delivery

Export Business

yuanda boiler,china boiler

Yuanda Boiler, Contact Yuanda

Boiler Features：Steam Boiler; Hot Water Boiler; Horizontal Boiler; 0.5ton-50ton; 350kw-35000kw; 10hp-3000hp(bhp); Fire Tube Boiler; Three Pass Boiler; Automatic Running; Pressure 0.1Mpa-3.8Mpa; Thermal Efficiency 92.5-99.8%

Application

Industrial gas/oil fired boiler, widely used for industries in Foods, Beverage, Pasteurization, Textile, Paper, Animal feed, Garment, Ricemill, Dairy Products, Laundry, Poultry, Packaging, Plywood, Building material, Chemical, Center Heating, Hospital...

gas oil fired boiler for industries
