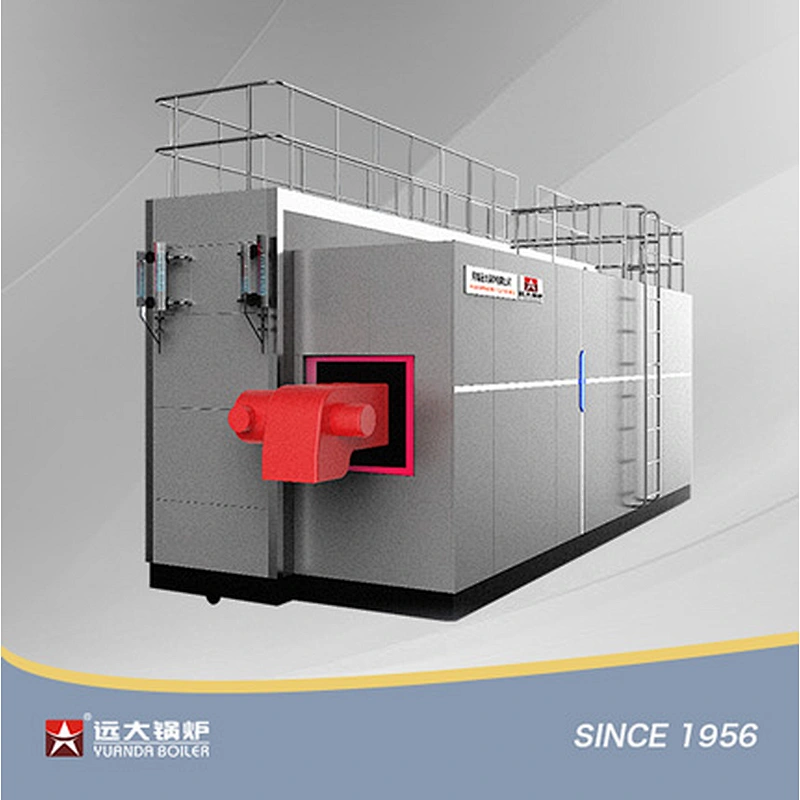

SZS Water Tube Gas Diesel Fired Boiler Double Drums Water Membrane Boiler 6ton 8ton 10ton 12ton 15ton 20ton 25ton 30ton

SZS Water Tube Gas Diesel Fired Boiler Double Drums Water Membrane Boiler 6ton 8ton 10ton 12ton 15ton 20ton 25ton 30ton

Model NO.: SZS

SZS water tube gas oil fired boiler, adopt water membrane structure, water tube double drums boiler. High efficiency industrial boiler, fully automatic water tube boiler, water tube gas boiler, water tube diesel oil boiler.

Quantity:

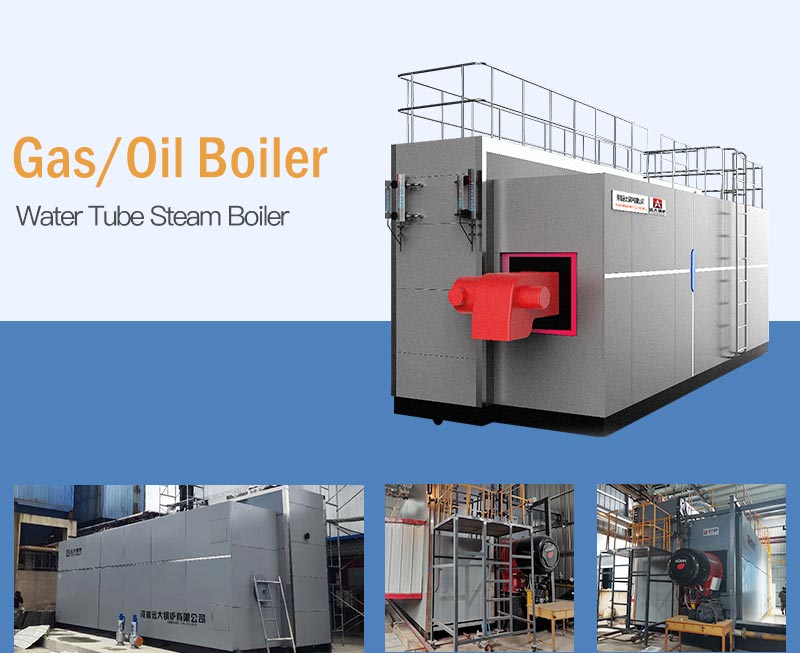

SZS Water Tube Gas/Oil Fired Boiler

Boiler Details

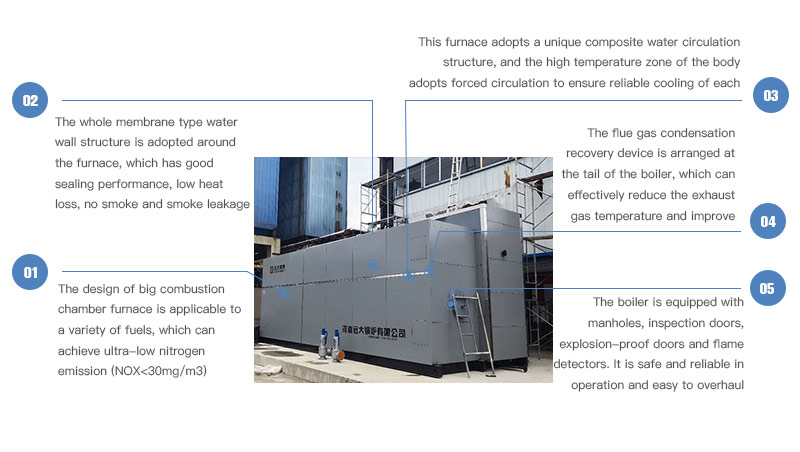

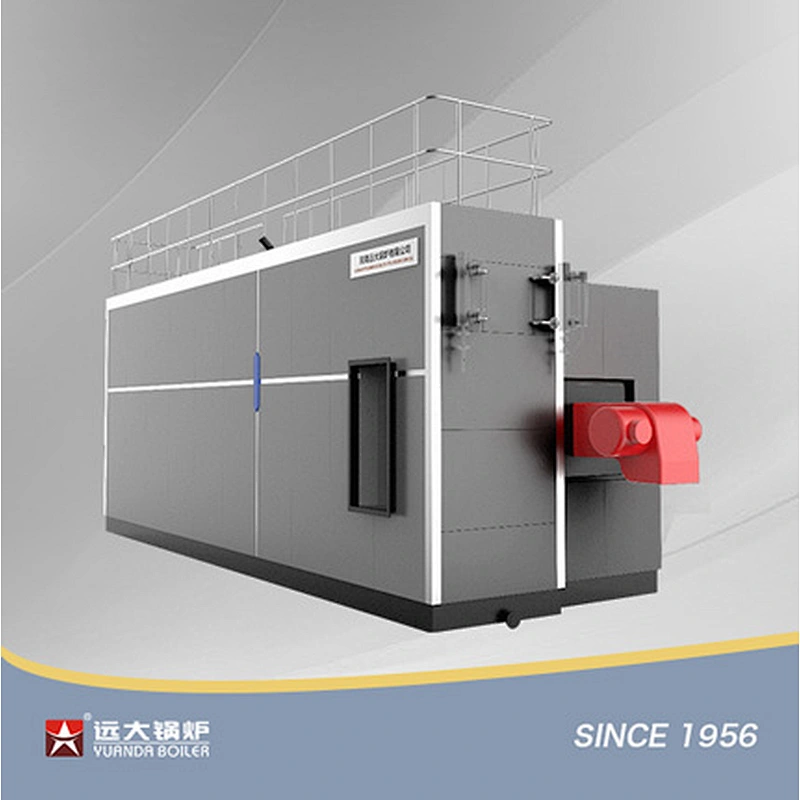

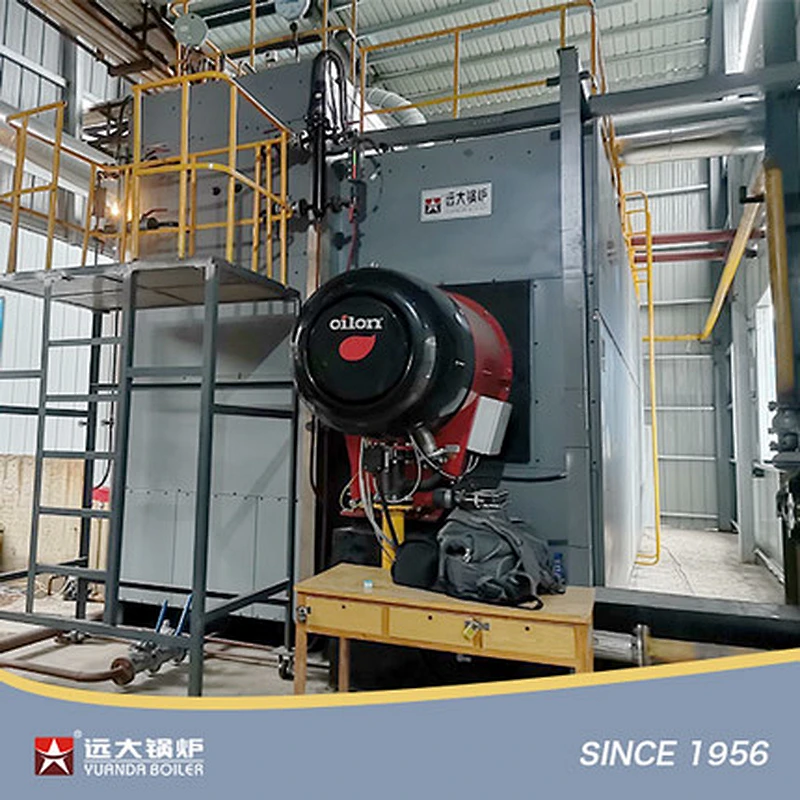

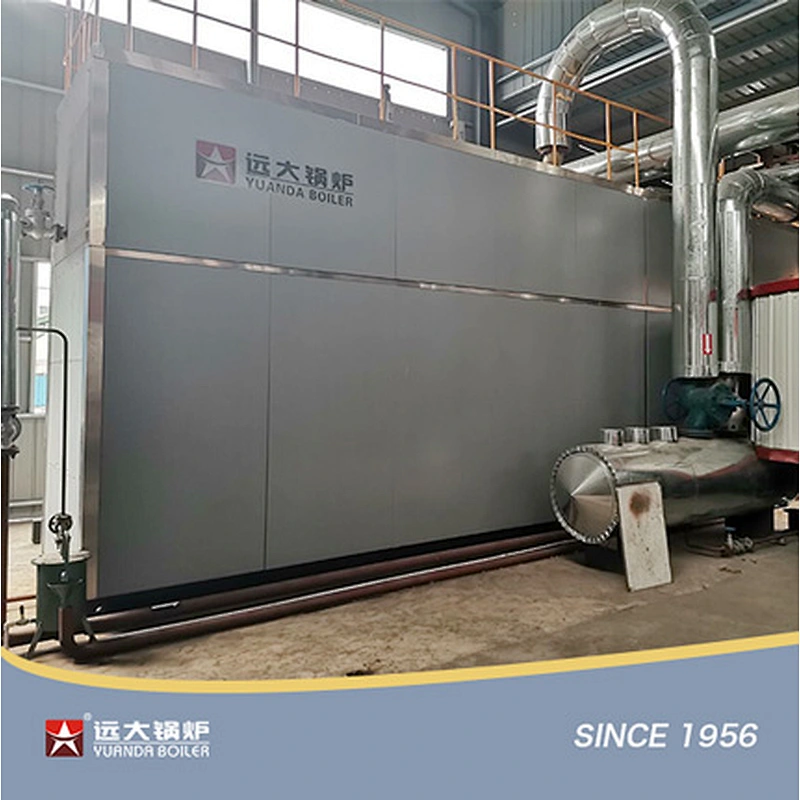

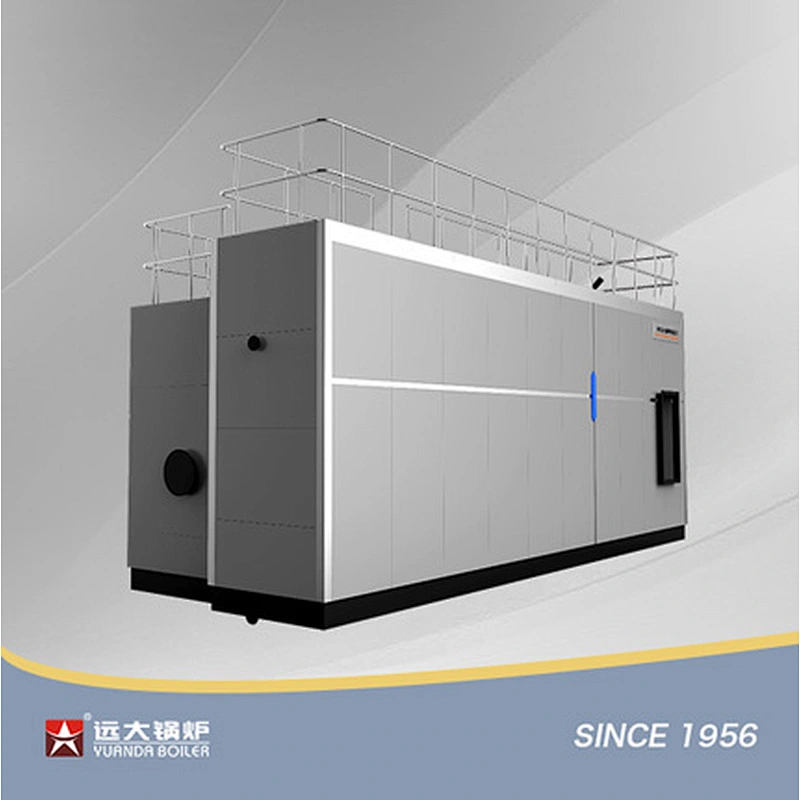

SZS water tube oil gas fired boiler, adopts double drums"D-type"vertical arrangement, full-membrane wall structure, reasonable and compact layout, realize large-capacity boiler overall quick installation, less investment in boiler house infrasturcture and short installation period.

Technical Parameter

SZS Series Steam Boiler Technical Parameter
Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated steam temperature(℃)	feed temperature(℃)	Thermal efficiency(%)	Fuel comsumption		max transportation weigh(t)
Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated steam temperature(℃)	feed temperature(℃)	Thermal efficiency(%)	light diesel oil(kg/h)	natural gas(Nm³/h)	max transportation weigh(t)
SZS10-1.25/1.6/2.5/3.82-YQ	10	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞98	618	660	36
SZS15-1.25/1.6/2.5/3.82-YQ	15	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞98	927	987	45
SZS20-1.25/1.6/2.5/3.82-YQ	20	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞98	1256	1316	52.6
SZS25-1.25/1.6/2.5/3.82-YQ	25	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞98	1545	1660	55.3
SZS30-1.25/1.6/2.5/3.82-YQ	30	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞98	1856	1981	63.7
SZS40-1.25/1.6/2.5/3.82-YQ	40	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞98	2470	2630	77.4
Note: Parameter is for reference only, if any changes should follow the factory technical data.

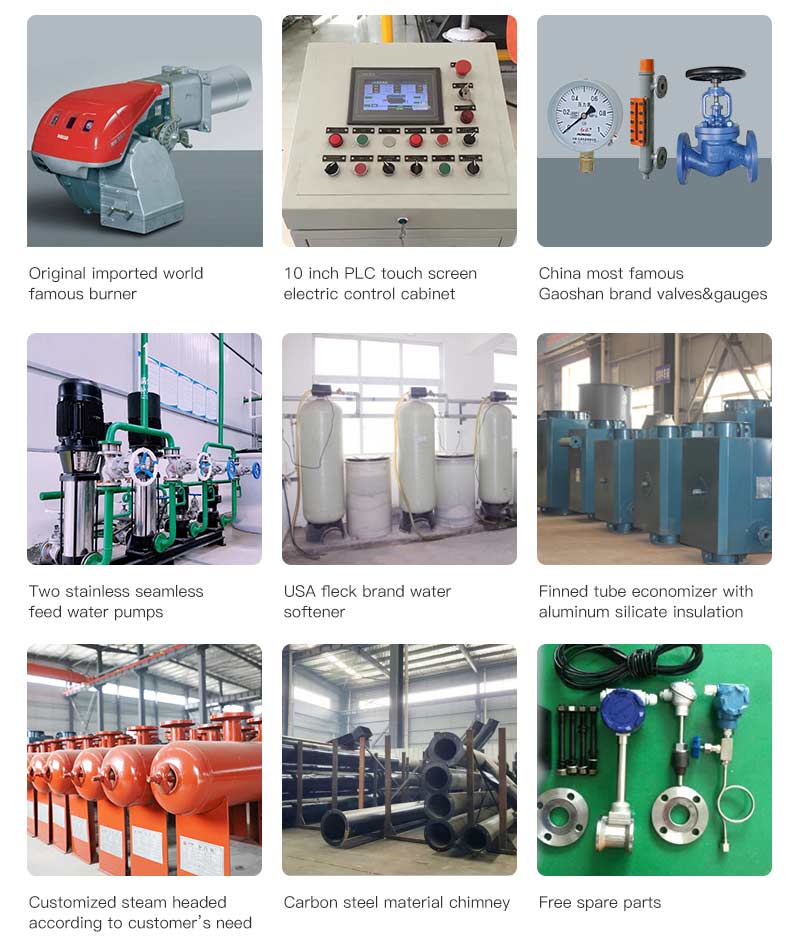

Boiler Accessories

Why choose us

Our Exhibitions

Boiler Features：Steam Boiler; Hot Water Boiler; Horizontal Boiler; 8ton-50ton; Water Tube Boiler; Automatic Running; Pressure 0.1Mpa-3.8Mpa; Heating Temp. 0-350°C; Thermal Efficiency 92.5-99.8%; Lifespan More Than 20Years

Application

Industrial gas/oil fired boiler, widely used for industries in Foods, Beverage, Pasteurization, Textile, Paper, Animal feed, Garment, Ricemill, Dairy Products, Laundry, Poultry, Packaging, Plywood, Building material, Chemical, Center Heating, Hospital...

gas oil fired boiler for industries
