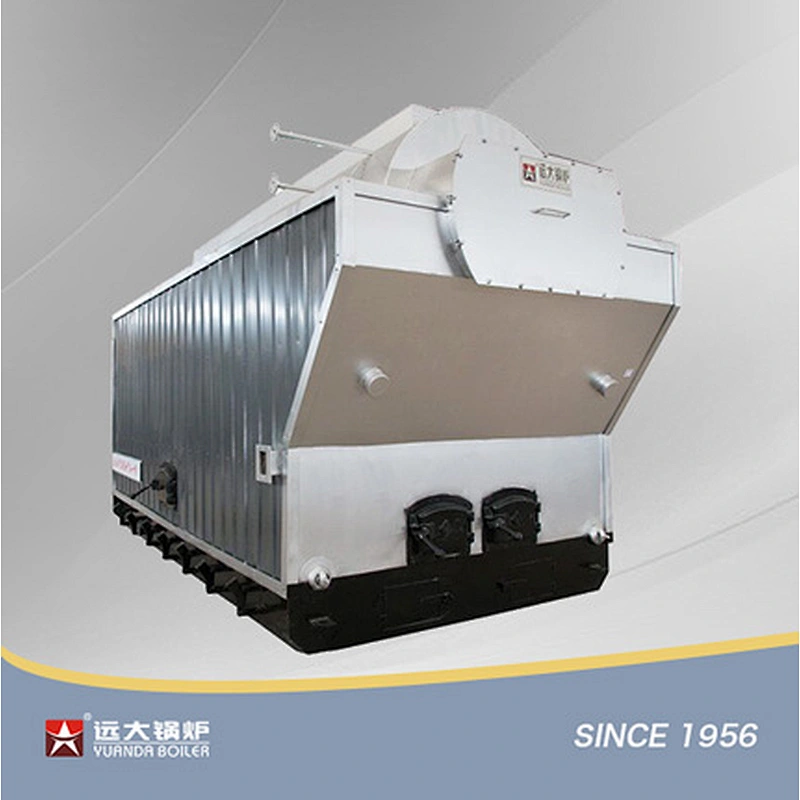

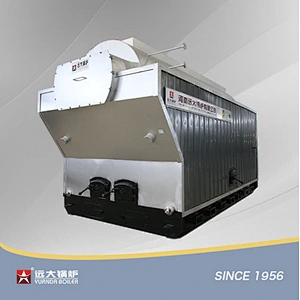

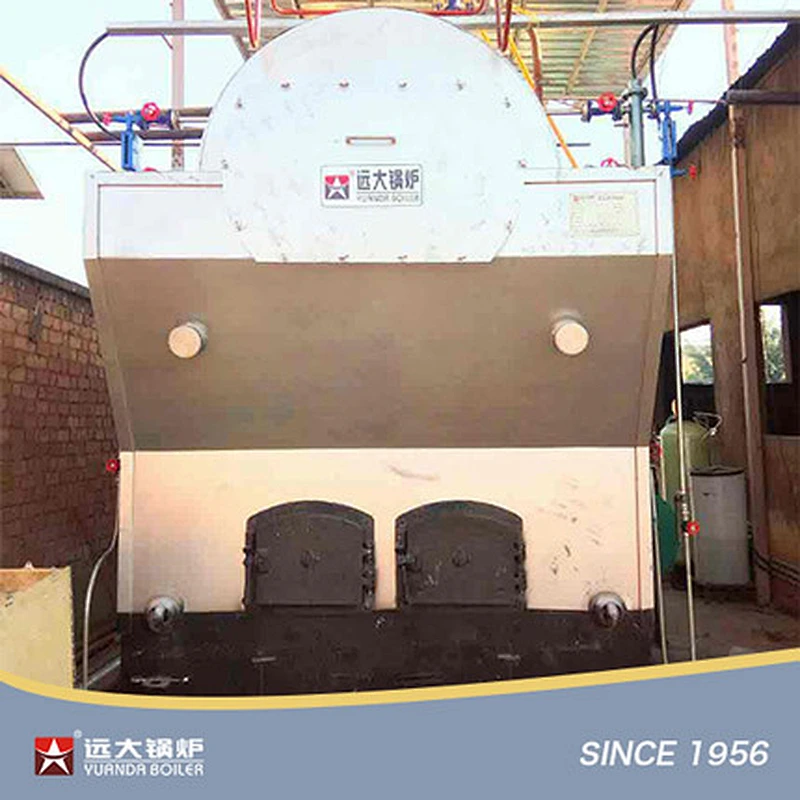

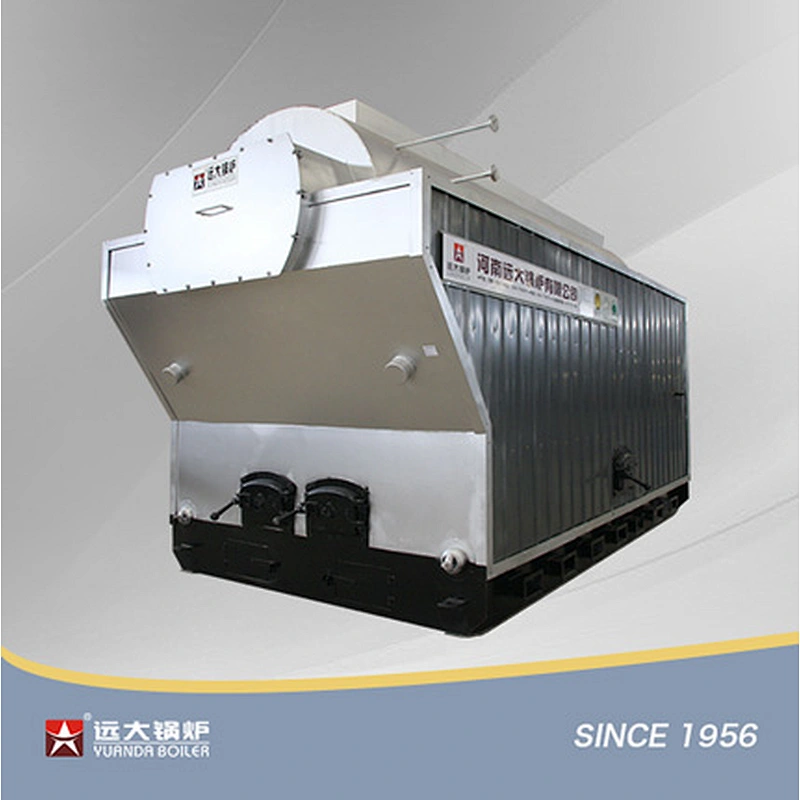

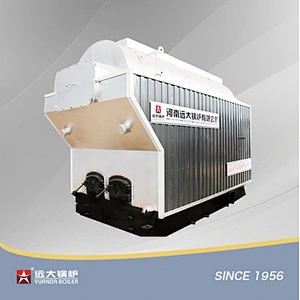

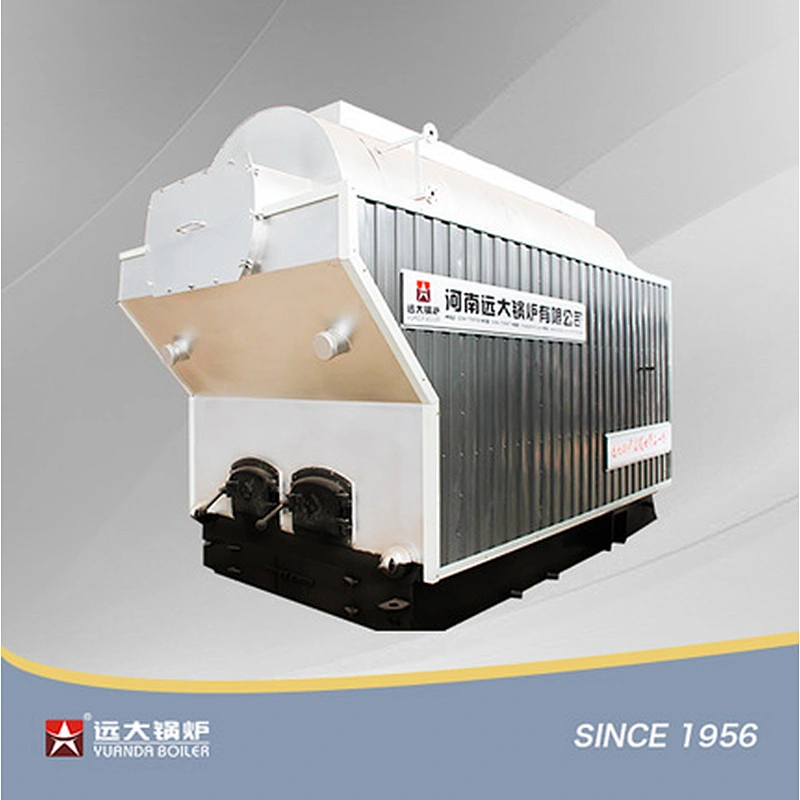

DZH Wood Biomass Boiler Manual Travelling Grate Biomass Boiler 1ton 2ton 4ton 6ton 8ton 10ton

DZH Wood Biomass Boiler Manual Travelling Grate Biomass Boiler 1ton 2ton 4ton 6ton 8ton 10ton

Model NO.: DZH Wood/Biomass Boiler

DZH wood biomass boiler, manual wood fired boiler, manual hand wood boiler, wood biomass boiler

Quantity:

DZH Manual Coal Boiler

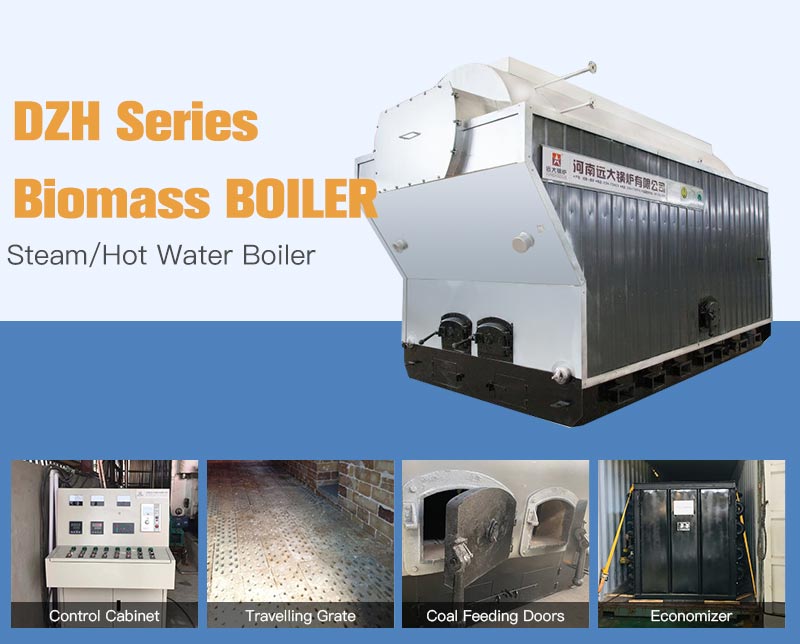

Product Description

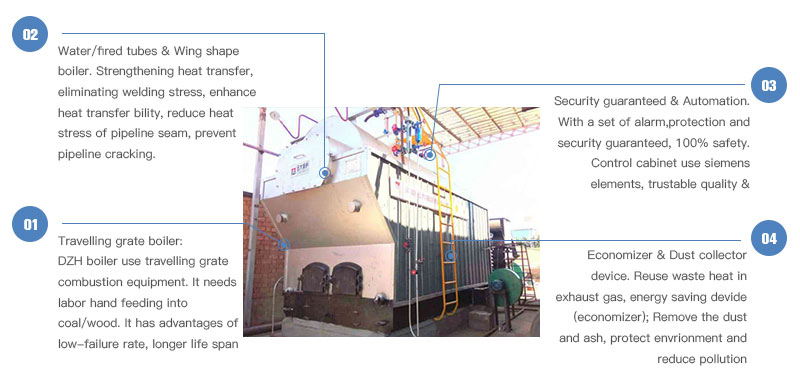

DZH Series Boiler, is a manual type biomass/wood feeding system boiler, water-fire tube sturcture & wing shape flue. It has strong fuel adaptability for solid fuel: coal, wood log, wood chip, wood waste, coal and solid fuel.

Technical Parameter

Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated steam temperature(℃)	feed temperature(℃)	Thermal efficiency(%)	Boiler water volume(m³)	Exhaust temperation(℃)	Fuel comsumption（Kg/h）	max transportation weigh(t)
Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated steam temperature(℃)	feed temperature(℃)	Thermal efficiency(%)	Boiler water volume(m³)	Exhaust temperation(℃)	Fuel comsumption（Kg/h）	max transportation weigh(t)
DZH1	1	1.0/1.25/1.6	184/194/204	20/104	＞82	3.15	127.25	192.32	9
DZL1	1	1.0/1.25/1.6	184/194/204	20/104	＞82	3.15	113.34	190.42	13.5
DZH2	2	1.0/1.25/1.6	184/194/204	20/104	＞82	4.75	126.41	386.47	15
DZL2	2	1.0/1.25/1.6	184/194/204	20/104	＞82	4.77	106.34	393.77	22
DZH4	4	1.0/1.25/1.6	184/194/204	20/104	＞82	7.7	137.25	782.29	18.5
DZL4	4	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞82	8.2	124.49	756.89	27.6
DZH6	6	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞82	7.4	146.83	1169.57	25
DZL6	6	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞82	8.1	137.29	1148.68	35
DZL8	8	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞82	9.6	141.06	1602.44	38
Note: Parameter is for reference only, if any changes should follow the factory technical data.

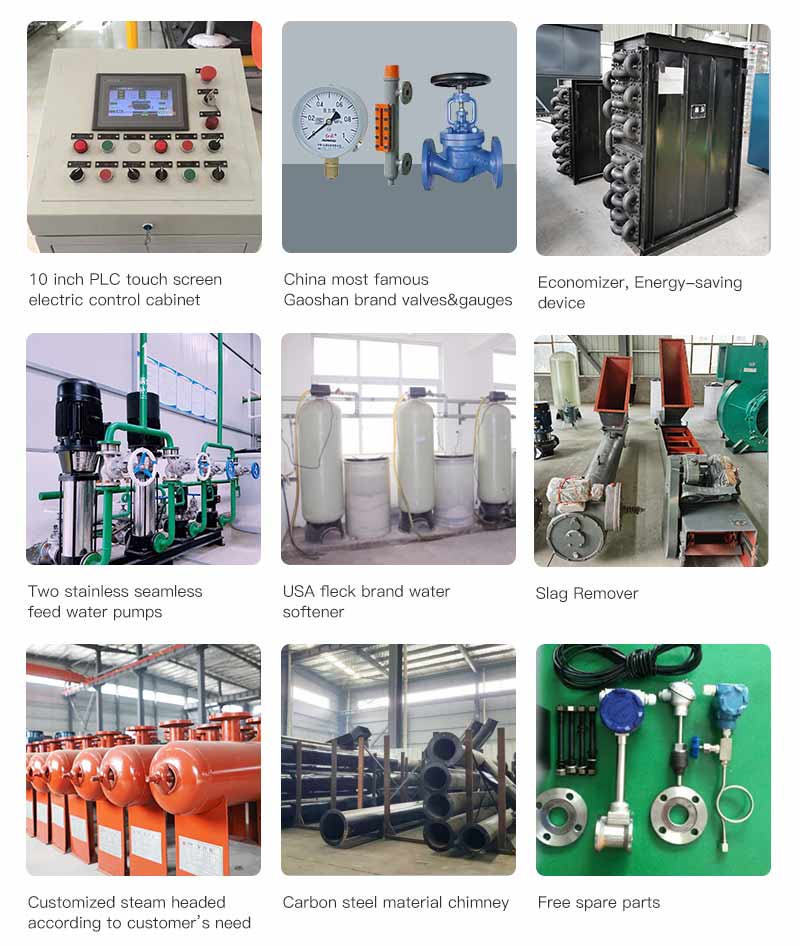

Boiler Accessories

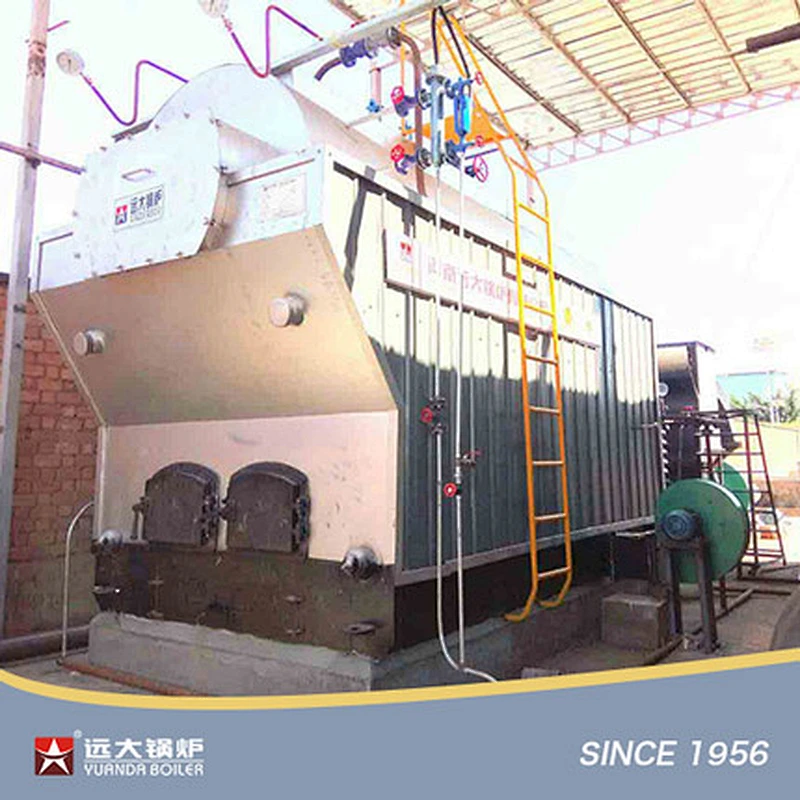

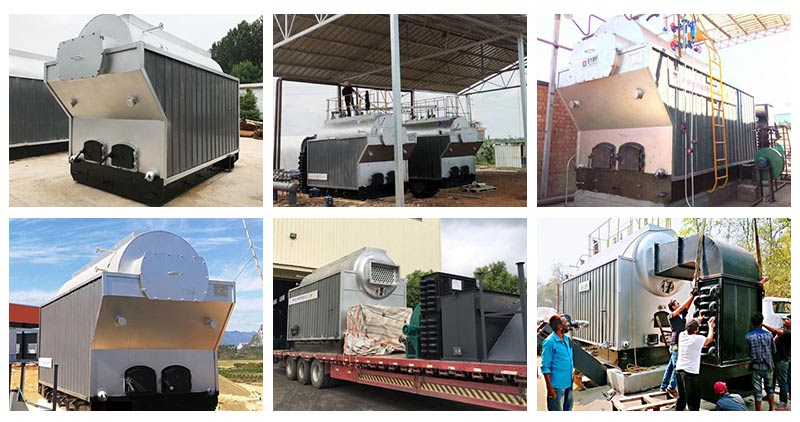

Boiler Cases

Why Choose us

After-sales Service Provided：Engineers available to service machinery overseas
Certification：Other; CE
Model Number：DZH
Brand Name：Yuanda
Place of Origin：Xihua County in Henan Province, China

Application

Biomass/wood fired boiler, widely used for industries in Foods, Beverage, Pasteurization, Textile, Paper, Animal feed, Garment, Ricemill, Dairy Products, Laundry, Poultry, Packaging, Plywood, Building material, Chemical, Center Heating, Hospital...
