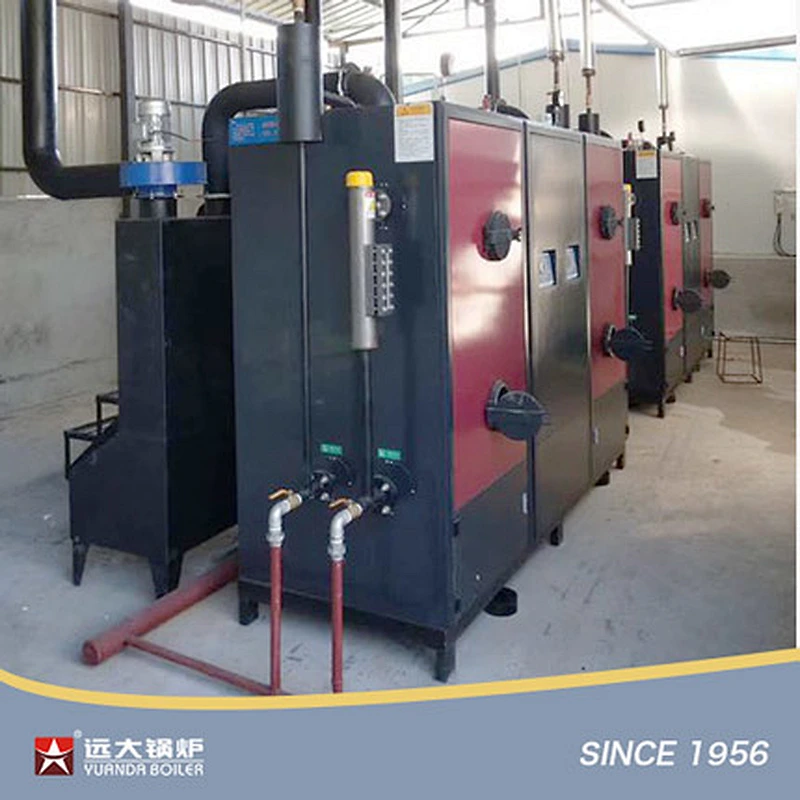

Wood/Biomass Pellets Steam Generator

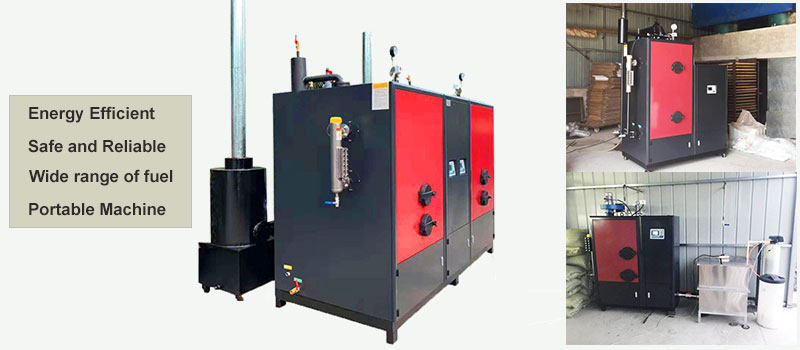

Wood/biomass pellet steam generator, Wood biomass steam generator.
Features: vertcompact structure, small size, low noise, large heating area, high thermal efficiency, strong integrity, good stability, movable type, able to connect with soft or hard pipes, easy to install etc.
1. Energy Efficient
Adopt advanced positive pressure combustion method. It has unique primary air heating and secondary air combustion configuration. It can completely burn off the biomass particle. It is the newest Environmental protection and energy saving products.
2. Safe and Reliable
Boiler has the automatic microcomputer system, automatic control of boiler operation, owning overpressure protection and water scarcity functions. Achieve the double insurance that body control the security and safety of the combustion control system.
3. Wide range of fuel
Biomass materials for combustion can use local materials. Solid biomass fuels uses woods, branches, saw dust, top woods, skins and butts, husk, straw, rice straw, manure and other waste products through mechanical processing a particulate with regular shape, rod or block fuel.
4. Durable
Careful design, superior materials and it using high technology to elaborate, with excellent corrosion resistance, durability and ruggedness.
| Model | Rated evaporation(T/H) | Rated pressure (Mpa) | Saturation temperature(℃) | Thermal efficiency(%) | Water capacity(L) | Fuel consumption(Kg/H) | power supply(V) |
| LSG0.08-0.7 | 0.08 | 0.7 | 170 | ≥90 | 29.5 | 12 | 220 |
| LSG0.12-0.7 | 0.12 | 0.7 | 170 | ≥90 | 29.5 | 17 | 220 |
| LSG0.16-0.7 | 0.16 | 0.7 | 170 | ≥90 | 29.5 | 25 | 220 |
| LSG0.23-0.7 | 0.23 | 0.7 | 170 | ≥90 | 29.5 | 33 | 220 |
| LSG0.30-0.7 | 0.3 | 0.7 | 170 | ≥90 | 47.5 | 50 | 220 |
| LSG0.50-0.7 | 0.5 | 0.7 | 170 | ≥90 | 29.5 | 75 | 220 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||
