Model NO.: DZL Biomass Boiler

DZL biomass fuel fired boiler, DZL biomass boiler, DZL Biomass wood boiler. Chain Grate Biomass Boiler.

Quantity:

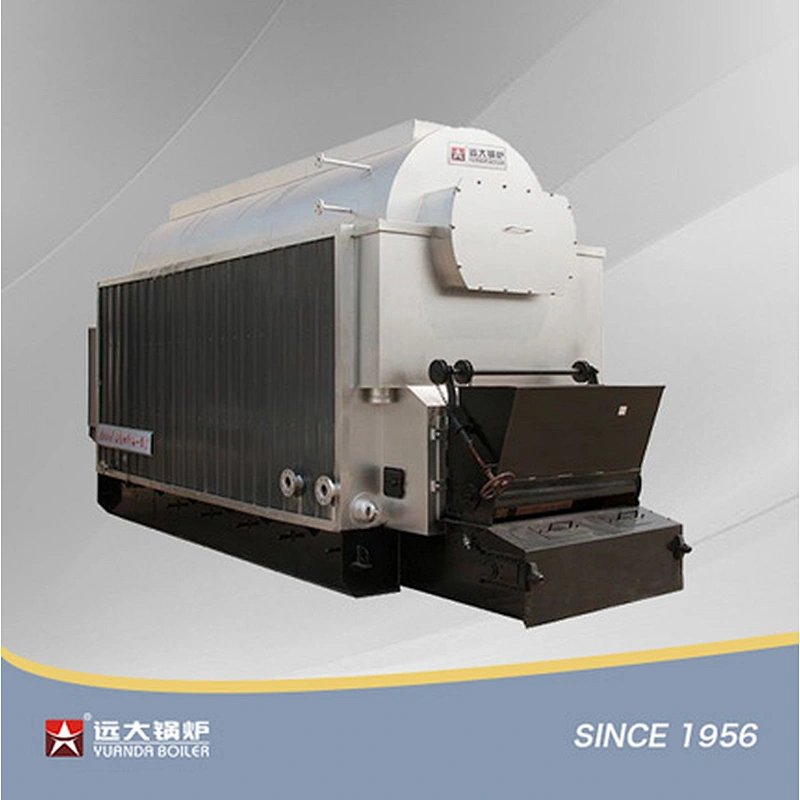

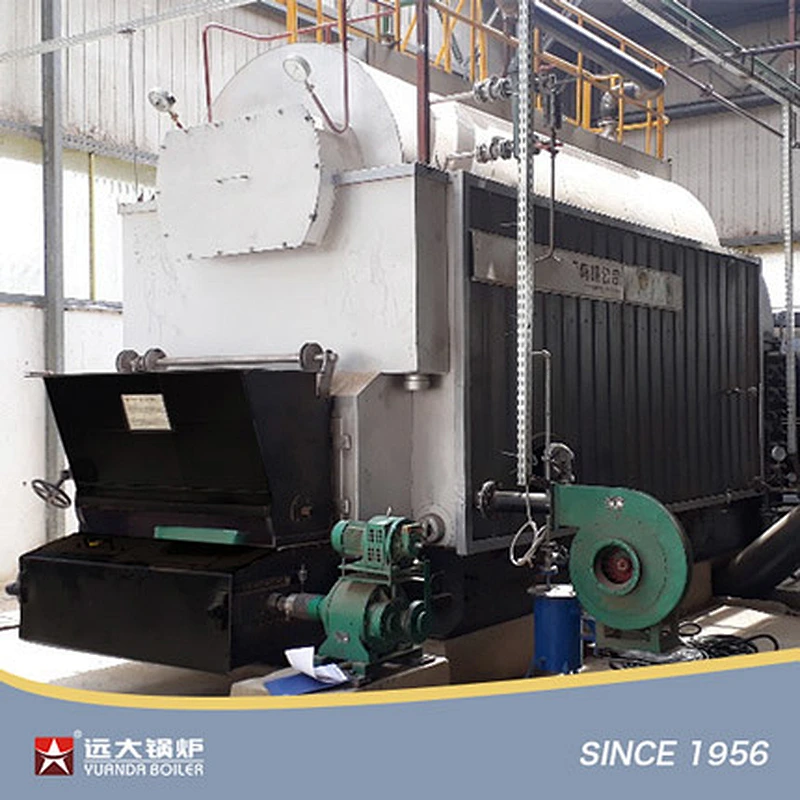

DZL Chain Grate Biomass Boiler

Product Description

DZL series biomass boiler, is horizontal three-pass water & fire tube boilers with grate combustion device. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides from a radiation heating surface in the furnace.

Technical Parameter

Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated steam temperature(℃)	feed temperature(℃)	Thermal efficiency(%)	Boiler water volume(m³)	Exhaust temperation(℃)	Fuel comsumption（Kg/h）	max transportation weigh(t)
Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated steam temperature(℃)	feed temperature(℃)	Thermal efficiency(%)	Boiler water volume(m³)	Exhaust temperation(℃)	Fuel comsumption（Kg/h）	max transportation weigh(t)
DZH1	1	1.0/1.25/1.6	184/194/204	20/104	＞82	3.15	127.25	192.32	9
DZL1	1	1.0/1.25/1.6	184/194/204	20/104	＞82	3.15	113.34	190.42	13.5
DZH2	2	1.0/1.25/1.6	184/194/204	20/104	＞82	4.75	126.41	386.47	15
DZL2	2	1.0/1.25/1.6	184/194/204	20/104	＞82	4.77	106.34	393.77	22
DZH4	4	1.0/1.25/1.6	184/194/204	20/104	＞82	7.7	137.25	782.29	18.5
DZL4	4	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞82	8.2	124.49	756.89	27.6
DZH6	6	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞82	7.4	146.83	1169.57	25
DZL6	6	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞82	8.1	137.29	1148.68	35
DZL8	8	1.0/1.25/1.6/2.5	184/194/204/226	20/104	＞82	9.6	141.06	1602.44	38
Note: Parameter is for reference only, if any changes should follow the factory technical data.

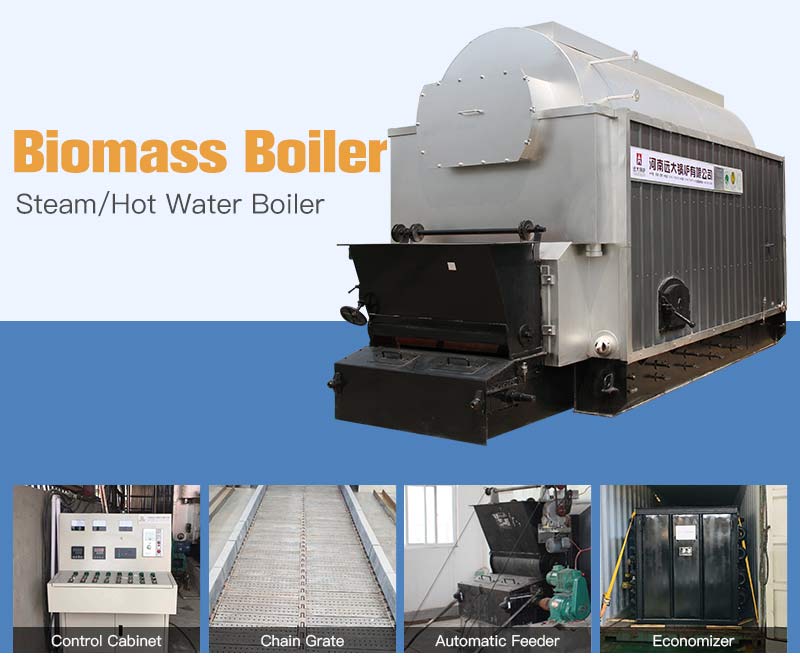

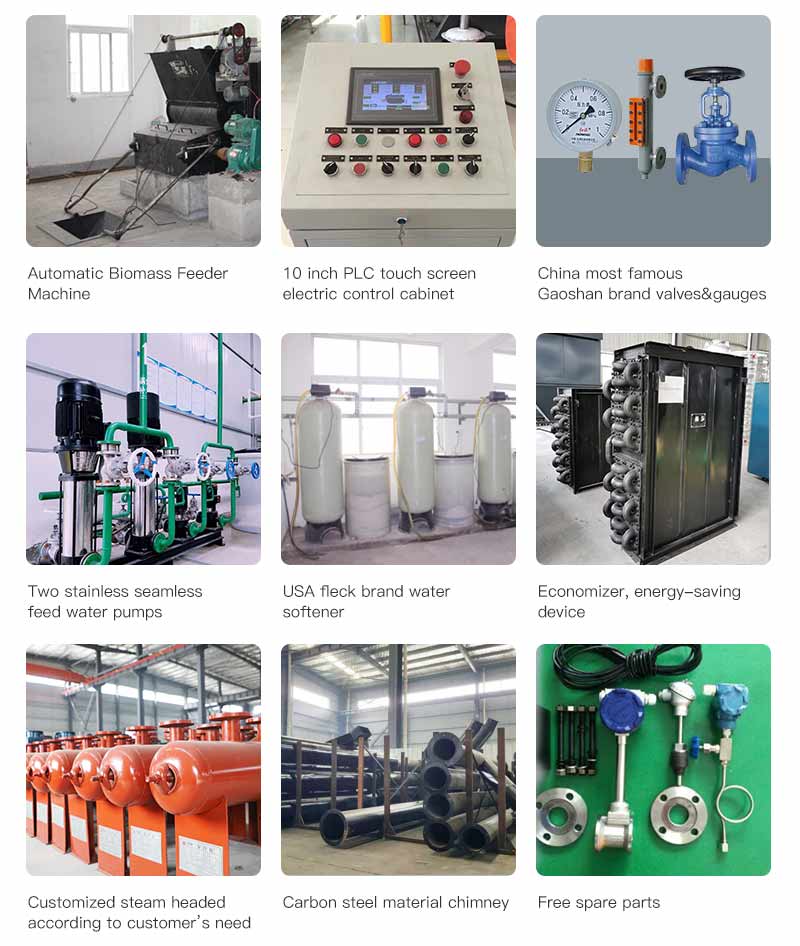

Boiler Accessories

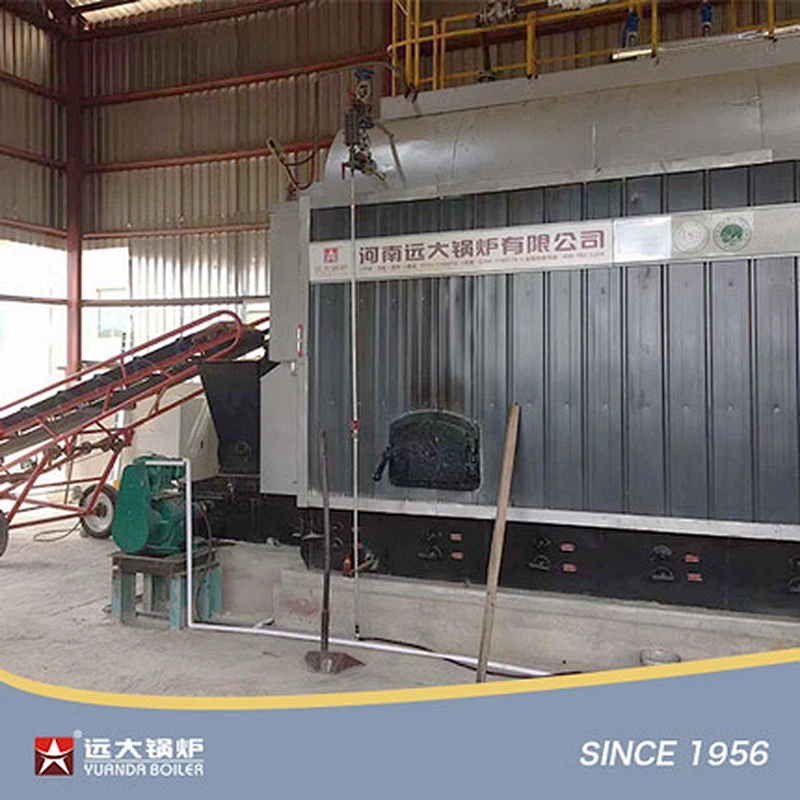

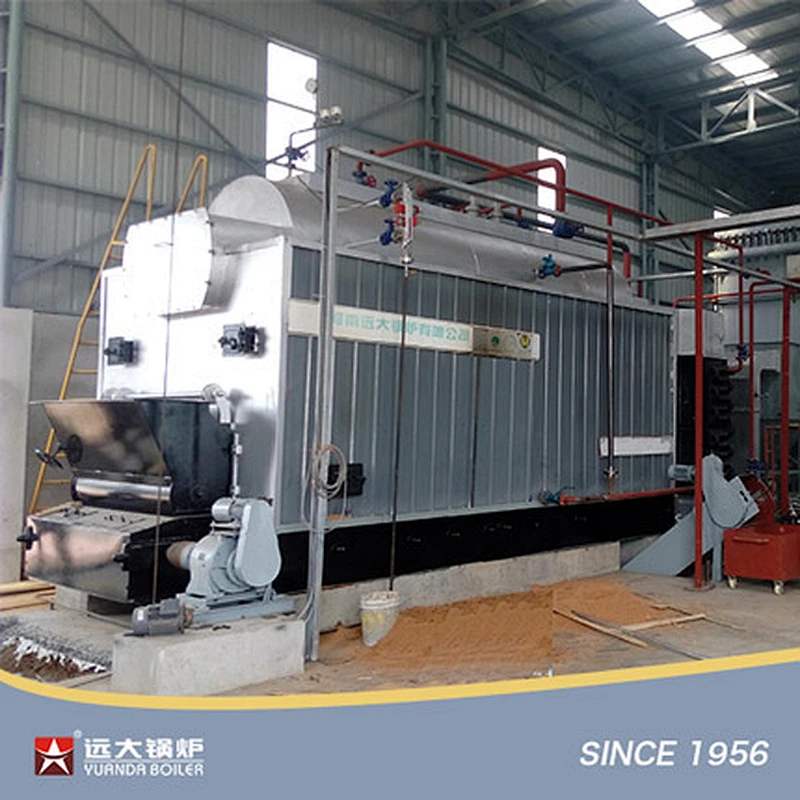

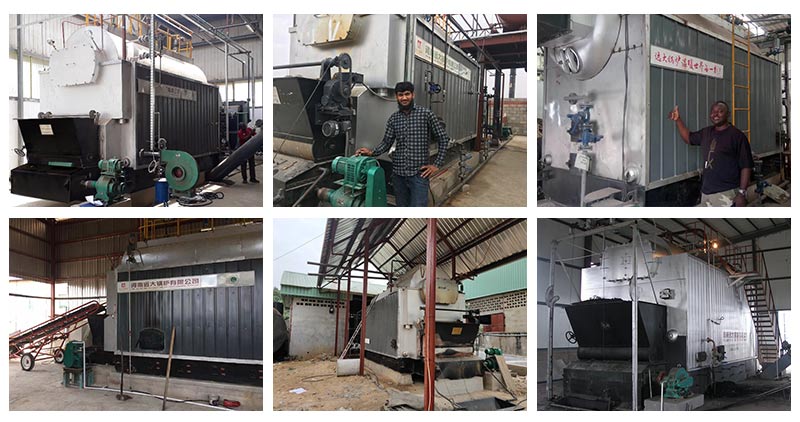

Boiler Cases

Why Choose us

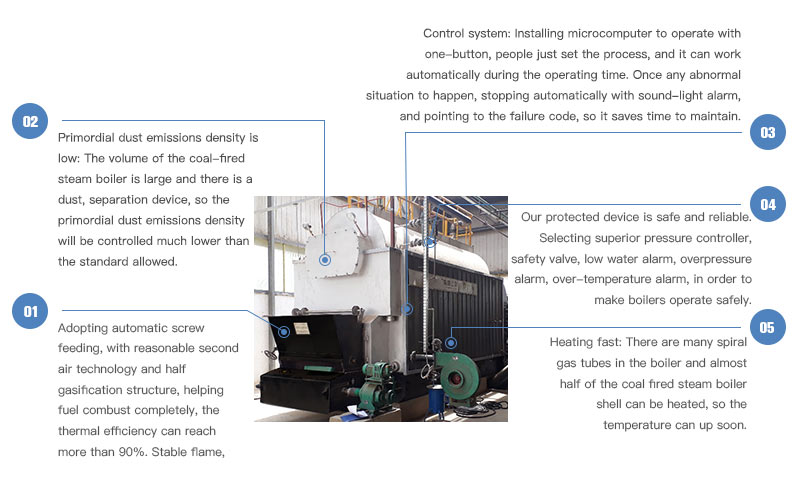

Boiler Features：Steam Boiler; Hot Water Boiler; Biomass fuel, husk, palm shells, coconut, solid waste; 0.5ton-50ton; 350kw-35000kw; Three Pass Boiler; Automatic Running; Pressure 0.1Mpa-3.8Mpa; Heating Temp. 0-350°C; Lifespan More Than 20Years

Application

Biomass/wood fired boiler, widely used for industries in Foods, Beverage, Pasteurization, Textile, Paper, Animal feed, Garment, Ricemill, Dairy Products, Laundry, Poultry, Packaging, Plywood, Building material, Chemical, Center Heating, Hospital...
