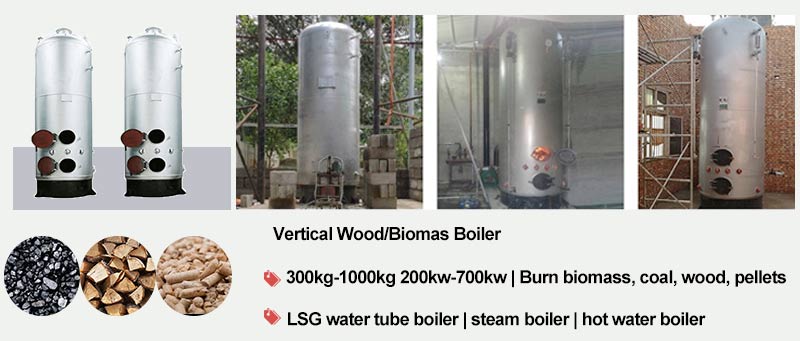

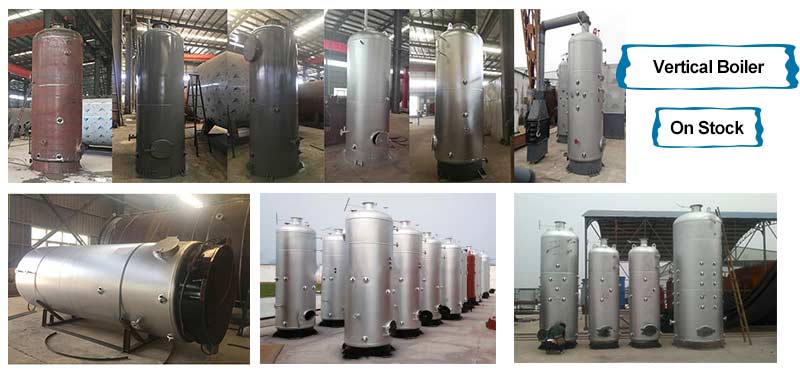

Vertical Wood Biomass Boiler
LSG Series Vertical boiler, it burn coal, charcoal, wood, pellets. Used as steam boiler, hot water boiler for heating.
LSG Vertical Coal Boiler Structure: Boiler body made of U-circle, boiler drum, shell cover, furnace, horizontal water tube, vertical tube, convection tubes etc. pressure parts. Set manhole on shell cover, convenient for boiler maintenance and clean.
Vertical Biomass/Wood Boiler Advantages:
1. Low pressure operation, safety and quick run-on heating water, generate steam.
2. Vertical type, small area occupied, low investment cost.
3. Small one and simple structure boiler, easy for installation.
4. Double-deck fire grate combustion chamber design, flue gas burn twice, low fuel consumption
| Model | Rated evaporation(T/H) | Rated pressure (Mpa) | Saturation temperature(℃) | Thermal efficiency(%) | Water capacity(L) | Fuel consumption(Kg/H) | power supply(V) |
| LSG0.08-0.7 | 0.08 | 0.7 | 170 | ≥90 | 29.5 | 12 | 220 |
| LSG0.12-0.7 | 0.12 | 0.7 | 170 | ≥90 | 29.5 | 17 | 220 |
| LSG0.16-0.7 | 0.16 | 0.7 | 170 | ≥90 | 29.5 | 25 | 220 |
| LSG0.23-0.7 | 0.23 | 0.7 | 170 | ≥90 | 29.5 | 33 | 220 |
| LSG0.30-0.7 | 0.3 | 0.7 | 170 | ≥90 | 47.5 | 50 | 220 |
| LSG0.50-0.7 | 0.5 | 0.7 | 170 | ≥90 | 29.5 | 75 | 220 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||
Biomass/wood fired boiler, widely used for industries in Foods, Beverage, Pasteurization, Textile, Paper, Animal feed, Garment, Ricemill, Dairy Products, Laundry, Poultry, Packaging, Plywood, Building material, Chemical, Center Heating, Hospital...
