SZL Series Biomass Steam Boiler Double Drums Water Tube Boiler Solid Waste Boiler

SZL Series Biomass Steam Boiler Double Drums Water Tube Boiler Solid Waste Boiler

Model NO.: SZL Biomass Boiler

SZL biomass fired boiler, water tube biomass boiler, szl biomass steam boiler, szl double drums water tube boiler.

Quantity:

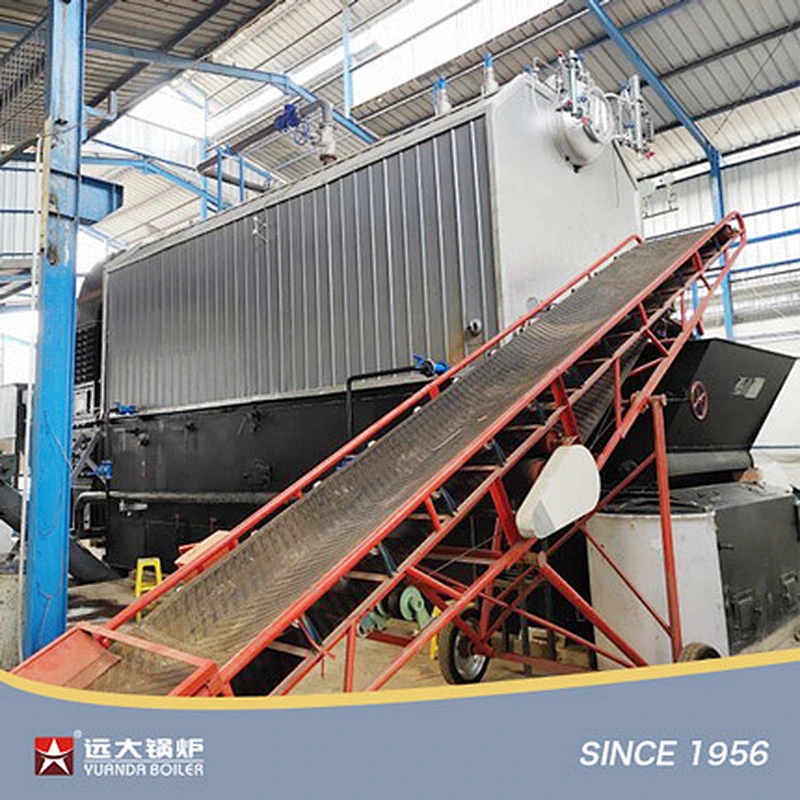

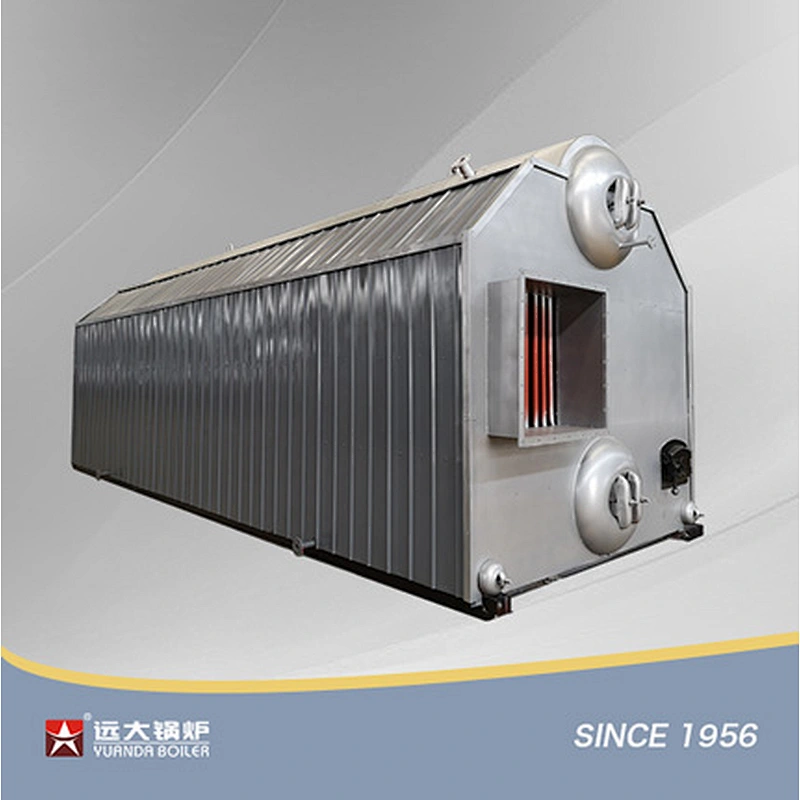

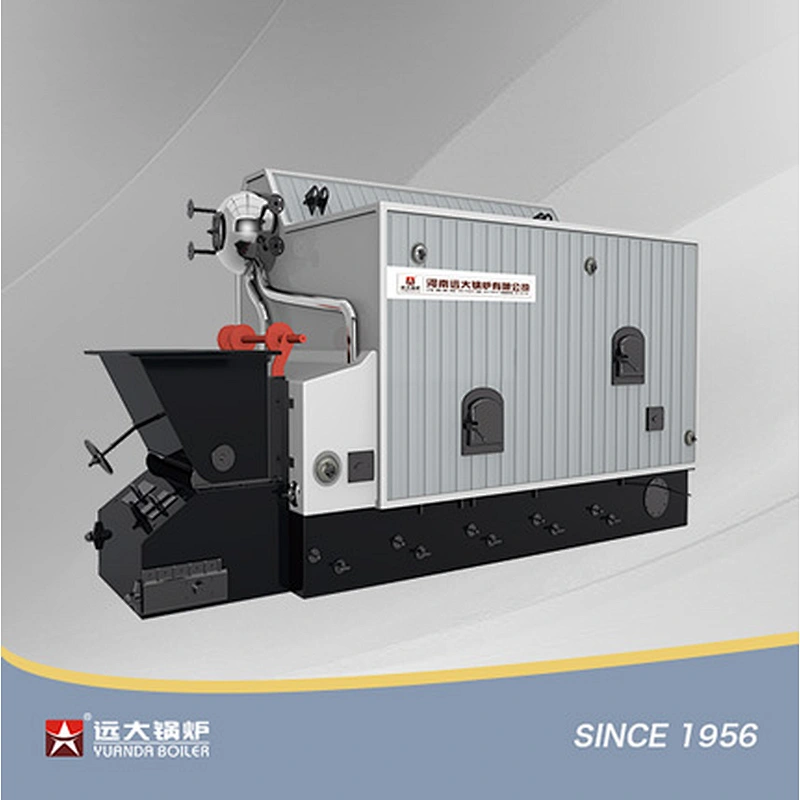

SZL Water Tube Biomass Boiler

Product Description

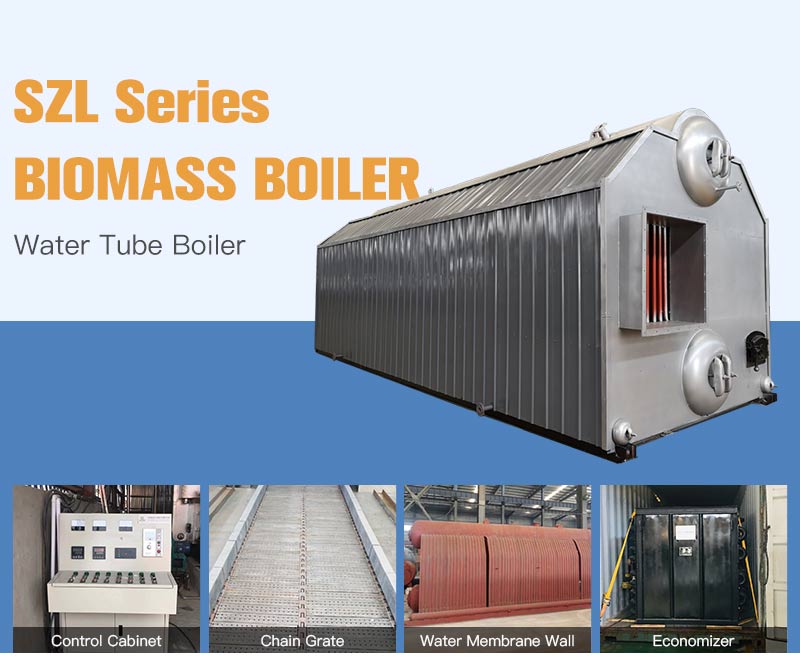

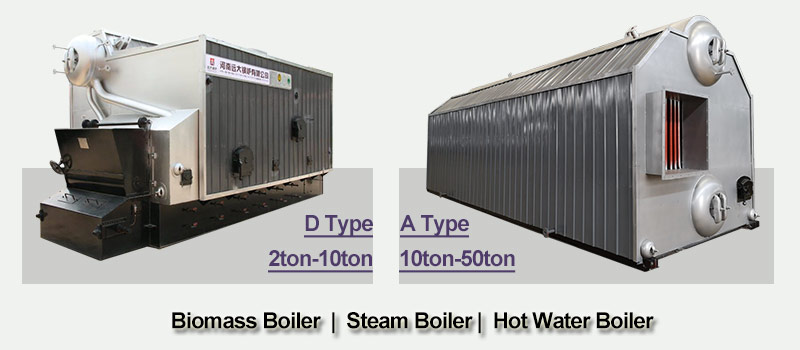

SZL water tube biomass boiler, suitable for capacity demand in 2ton-50ton. It is double-drums water tube assembly chain grate boiler (A/D type). High technology, environmental and energy-saving. Large heating surface, make sure enough space for biomass burning, automatic fuel feeding and slag removing system.

Technical Parameter

Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated steam temperature(℃)	feed temperature(℃)	Thermal efficiency(%)	Boiler water volume(m³)	Exhaust temperation(℃)	Fuel comsumption（Kg/h）	max transportation weigh(t)
Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated steam temperature(℃)	feed temperature(℃)	Thermal efficiency(%)	Boiler water volume(m³)	Exhaust temperation(℃)	Fuel comsumption（Kg/h）	max transportation weigh(t)
SZL2	2	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞83.13	6.76	130.7	385.8	22
SZL4	4	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞84.23	5.1	142	807	29
SZL6	6	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞84.81	8.4	142	1209	34
SZL8	8	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞85.02	9.4	149.1	1563.9	40.5
SZL10	10	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞86.2	8.35	152.7	2149.3	24
SZL12	12	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞86.56	12.8	148.7	2399.7	37
SZL15	15	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞86.29	15.2	149.8	2568.4	24.7
SZL20	20	1.25/1.6/2.5/3.82	194/204/226/450	20/104	＞86.8	15.5	147.4	4266.9	26
Note: Parameter is for reference only, if any changes should follow the factory technical data.

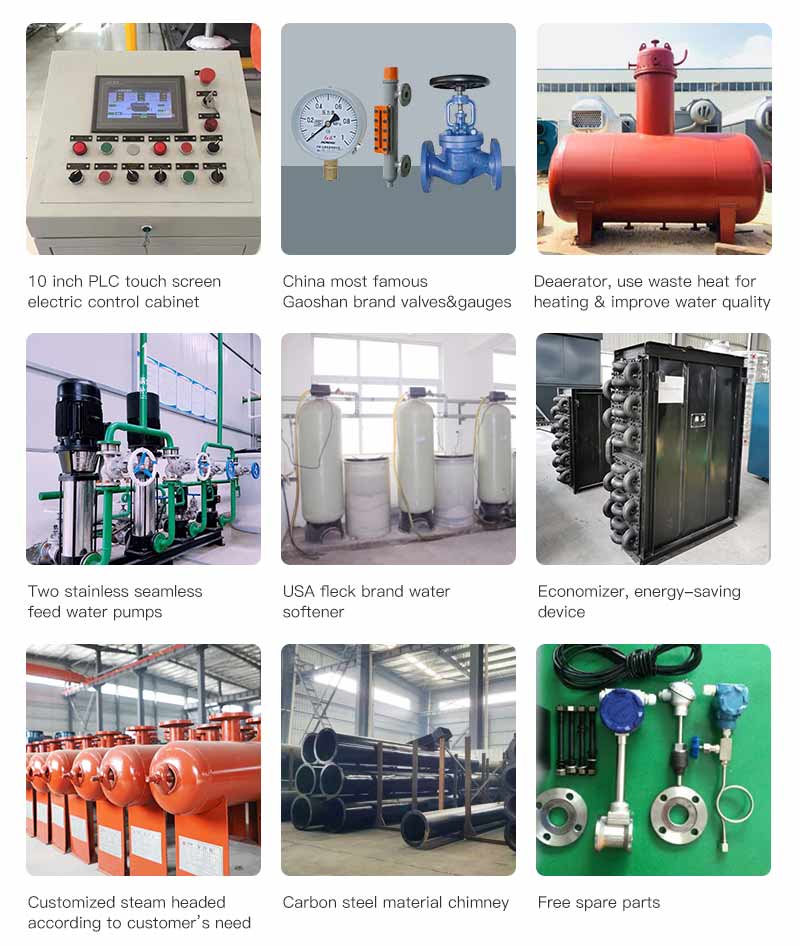

Boiler Accessories

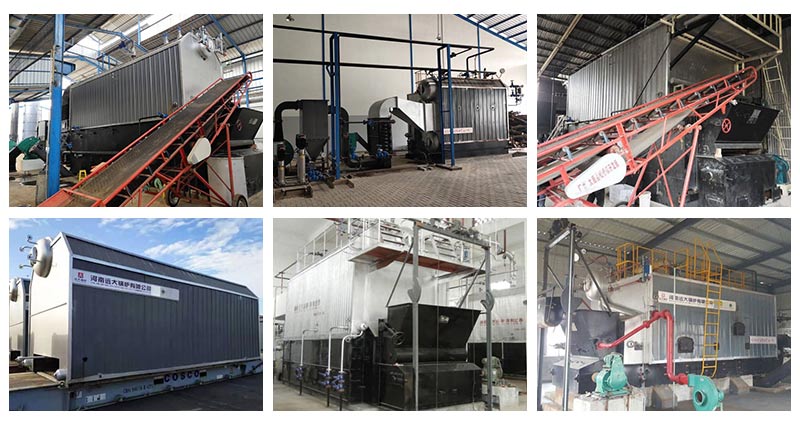

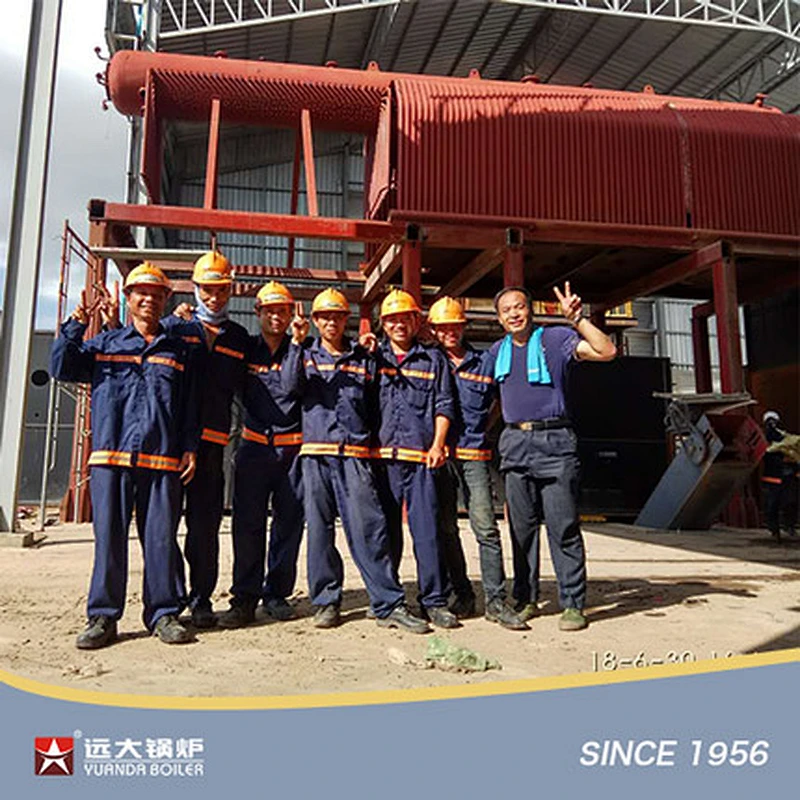

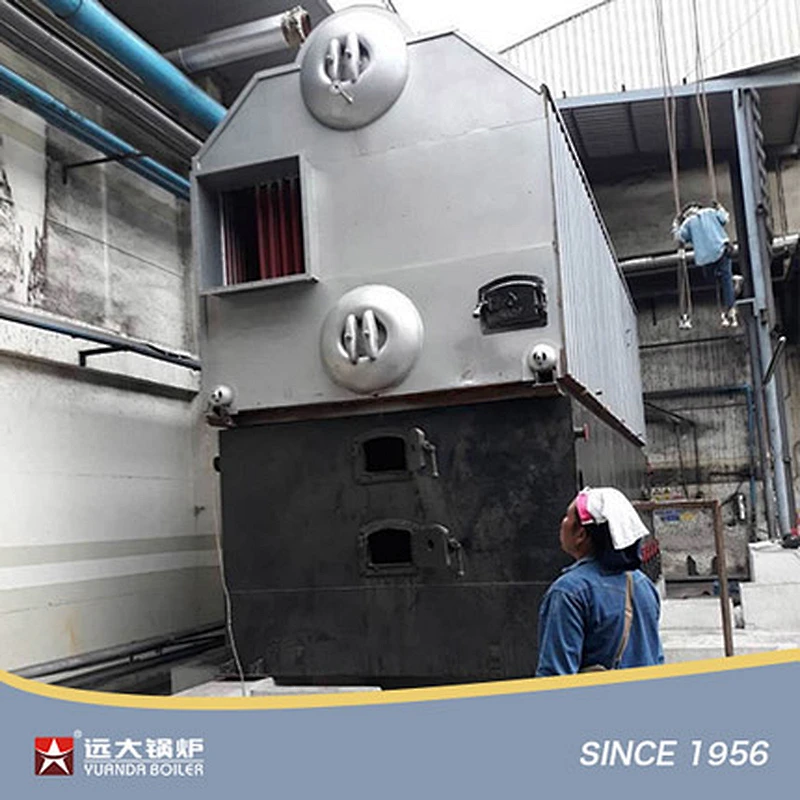

Boiler Cases

Why Choose us

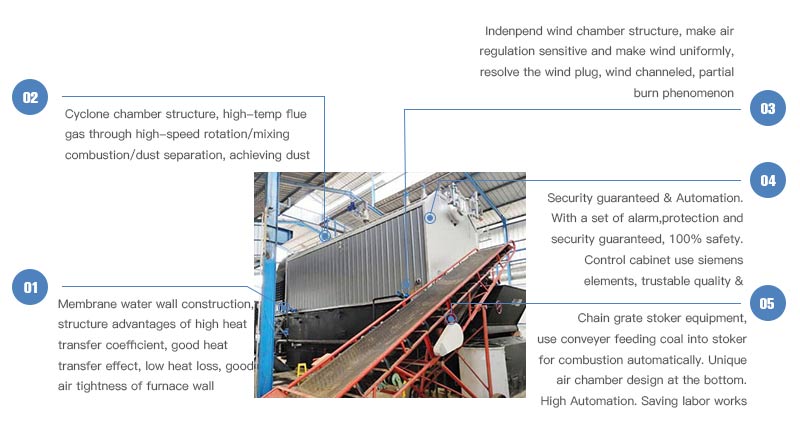

Boiler Features：Steam Boiler; Hot Water Boiler; Biomass fuel, husk, palm shells, coconut, solid waste; 2ton-50ton; Horizontal Boiler; Water Tube Boiler; Automatic Running; Pressure 0.1Mpa-3.8Mpa; Heating Temp. 0-350°C; Lifespan More Than 20Years

Application

Biomass/wood fired boiler, widely used for industries in Foods, Beverage, Pasteurization, Textile, Paper, Animal feed, Garment, Ricemill, Dairy Products, Laundry, Poultry, Packaging, Plywood, Building material, Chemical, Center Heating, Hospital...
